16.5:1 zoom optics
Resolves structures down to 1.1 microns for detailed fluorescence imaging.
Leica M165 FC Stereo Microscope
High-performance fluorescence
M165 FCFluorescent stereo microscope
The Leica M165 FC combines fully apochromatically corrected optics with a 16.5:1 zoom and resolves structures down to 1.1 microns for detailed fluorescence imaging.
Image coding helps reproduce settings and parameters, while TripleBeam™ technology provides a separate path for fluorescence excitation to enhance contrast, detail, and intensity.
16.5:1Zoom ratio
1.1 μmResolved structure
TripleBeam™Separate fluorescence path
7 typesIllumination options
Key features
Consistent results for fluorescence screening, manipulation, and documentation
Image coding
Conveniently reproduces settings and parameters for fast, consistent observation and documentation.
TripleBeam™ technology
A separate fluorescence-excitation channel supports high-contrast, high-performance imaging.
Parallax-free documentation
FluoCombi combines stereo manipulation and parallax-free documentation in one instrument.
Modular system
Optics, illumination, stands, and imaging components can be adapted to the application.
Illumination options
Choose the right contrast for the sample structure

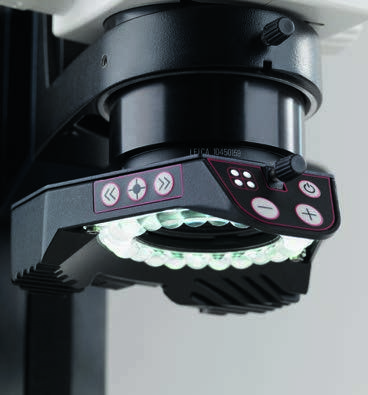

RL
Ring-light illumination
Provides bright, uniform illumination across a large object field. Diffusers and polarizer sets can be added to reduce glare and unwanted shiny spots.

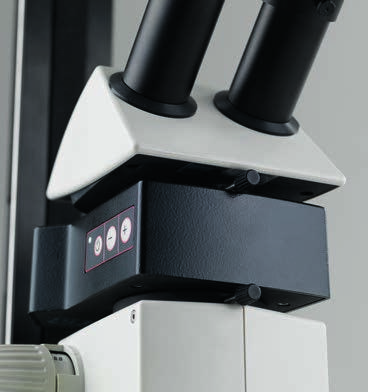

CXI
Coaxial illumination
Designed for fine cracks and smooth, reflective sample surfaces. Light is guided through the optics and reflected from the specimen for even contrast.

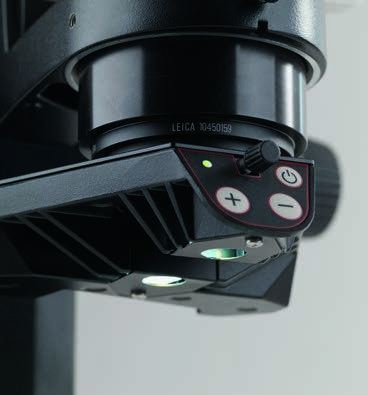

NVI
Near-vertical illumination
Delivers near shadow-free lighting for specimens with recesses, deep holes, or complex geometry, making difficult areas easier to observe.

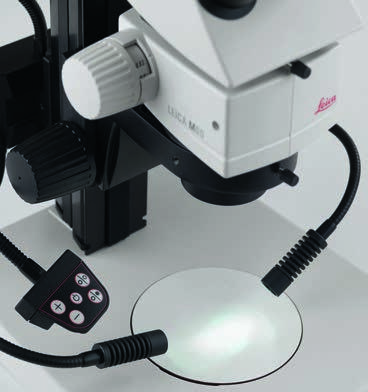

SLI
Spotlight illumination
Flexible goosenecks direct high-contrast light to the required position and suit many three-dimensional and surface samples.

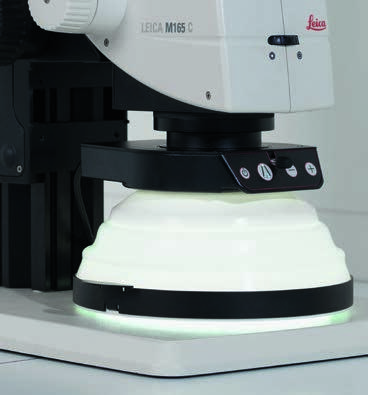

DI / HDI
Diffuse and highly diffuse illumination
Helps overcome backlight reflections from curved, non-flat, or reflective samples for more uniform surface appearance.

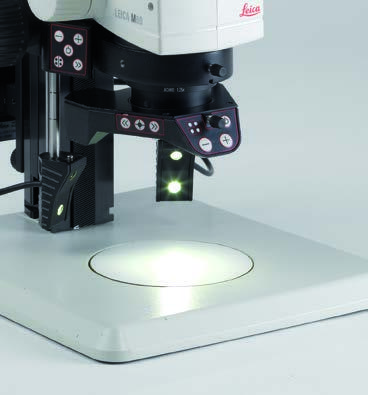

MCI
Multi-contrast illumination
Provides repeatable contrast from two directions and angles to reveal hard-to-image details and small surface structures.

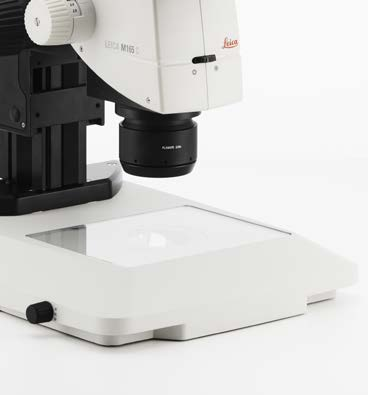

TL3000 Ergo
Transmitted-light base
A single knob cycles through brightfield, Rottermann Contrast, and darkfield for original colors, internal structures, or the finest outlines.
Media
Illumination modules, sample contrast, and system details
Applications
From fluorescence observation to fine surface inspection
Fluorescence screening
Observe and screen model organisms, tissues, and fluorescent structures.
Fine manipulation
Perform sorting, dissection, and specimen handling under stereo observation.
Image documentation
Improve reproducibility with image coding and FluoCombi.
Surface inspection
Use incident, diffuse, and transmitted light to reveal material details.
- Microscope type
- Fully apochromatic fluorescent stereo microscope
- Zoom ratio
- 16.5:1
- Smallest resolved structure
- 1.1 μm
- Fluorescence path
- TripleBeam™ separate excitation channel
- Setting reproduction
- Image coding
- Parallax-free documentation
- FluoCombi stereo and macro view
- System architecture
- Modular optics, illumination, and stand configuration
- Ring light
- Uniform large-field light; diffuser and polarizer options
- Coaxial illumination
- For smooth reflective surfaces and fine cracks
- Near-vertical illumination
- For recesses, deep holes, and complex shapes
- Spotlight
- Flexible gooseneck directional high-contrast light
- Diffuse illumination
- For curved, non-flat, or highly reflective samples
- Multi-contrast illumination
- Repeatable light from two directions and angles
- Transmitted-light base
- Brightfield, Rottermann Contrast, and darkfield
- Typical workflow
- Fluorescence observation, manipulation, screening, and imaging
