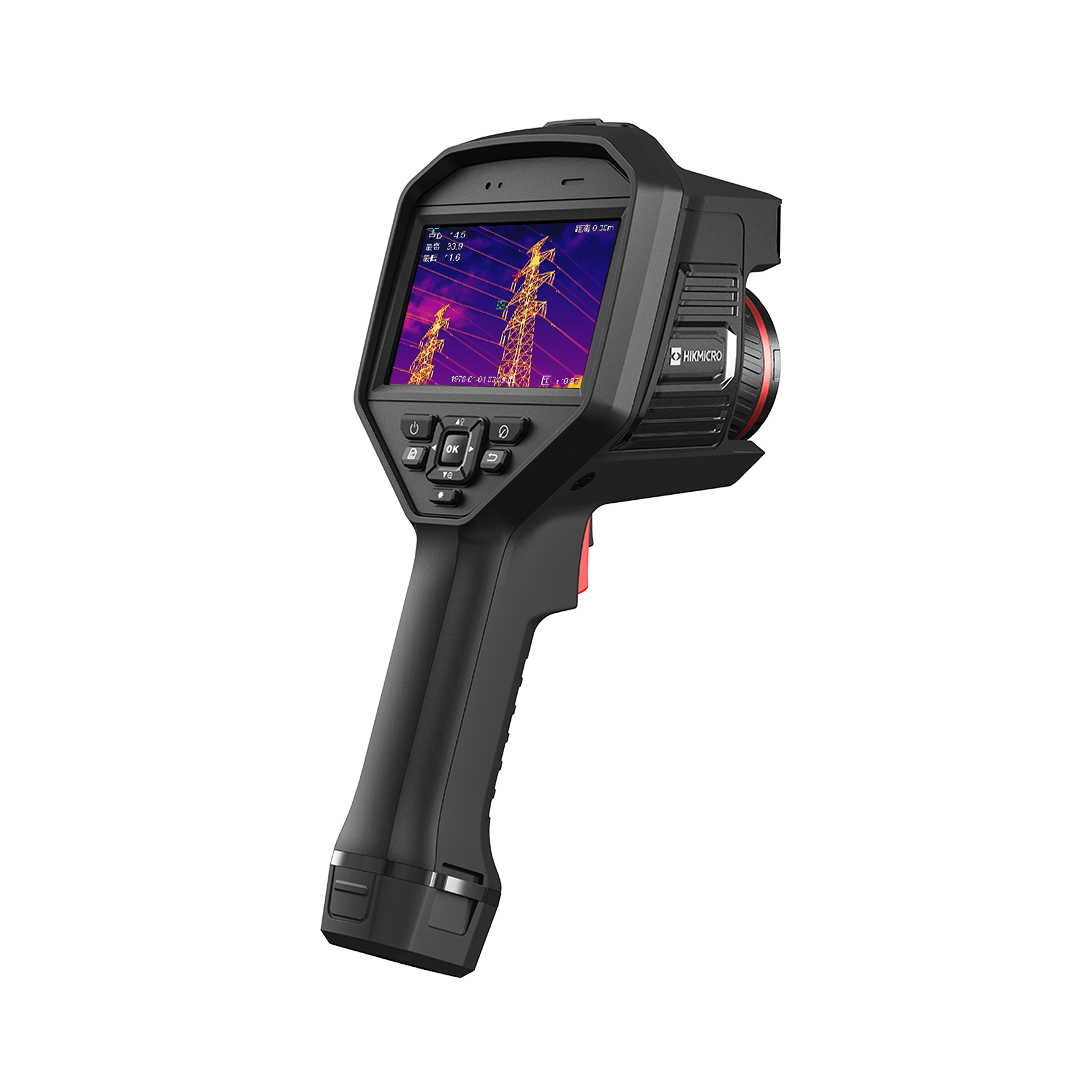

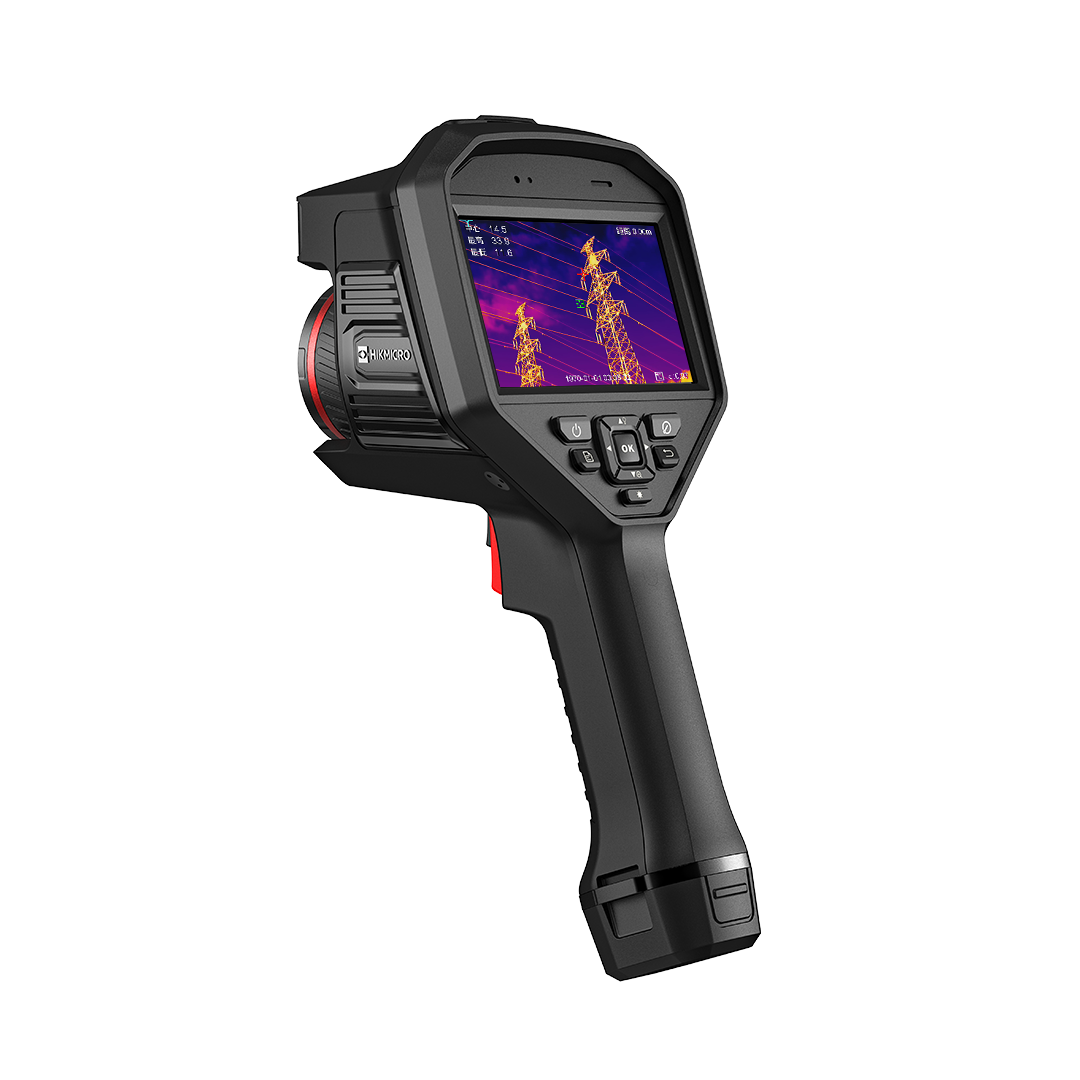

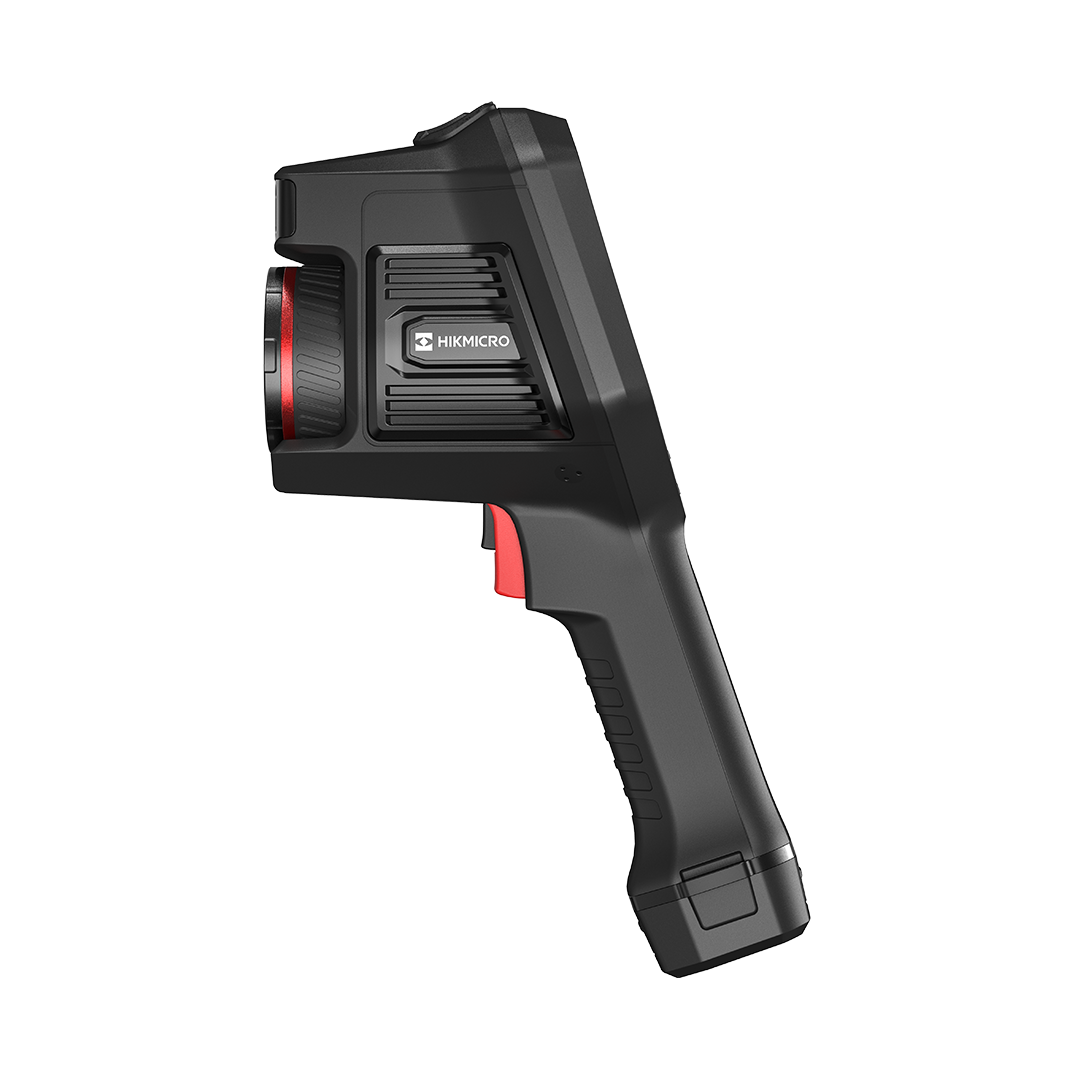

HM-TP7XY-ABCDEF (640, 4G) Handheld Temperature Thermography Camera
HIKMICRO · HM-TP7XY-ABCDEF(640, 4G)
HM-TP7XY-ABCDEF(640, 4G) Handheld Thermography Camera
Industrial Thermography | Fault Detection | Professional Thermal Imaging
Core capabilities for field inspection
The HM-TP7XY-ABCDEF(640, 4G) combines non-contact thermography, temperature measurement and field-ready documentation to help locate abnormal heat quickly and support follow-up analysis.
Clear thermal detail
A 640 × 512 (327,680 pixels) detector with a 50 Hz frame rate helps reveal temperature distribution across the target.
NETD < 0.03 °C (30 mK@ 25 °C (77 °F, F# = 1.0)Wide inspection coverage
The -20 °C~150 °C, 100 °C~650 °C temperature range supports routine equipment inspection, fault location and preventive maintenance.
Accuracy ±2 °C or ±2 %, whichever is greaterBuilt for field observation
A 25° × 19° field of view and a focus configuration of automatic, continuous autofocus, laser-assisted, touch and manual focus balance scene coverage with target detail.
IR resolution 640 × 512 (327,680 pixels)Information at a glance
The 4.3'' LCD capacitive touchscreen 800 × 480 display keeps thermal imagery and measurement data easy to review on site.
Measurement tools: hot spot, cold spot, center spot, 10 points, 5 boxes, 5 circles and 1 measurement lineReady for industrial sites
IP54 protection, 2 m drop resistance and a weight of approximately 1075 g (with lens, including battery) support mobile field use.
Dimensions 284.7 mm × 120.6 mm × 124.5 mmCapture, transfer and analyze
Storage: 64 GB, maximum 128 GB; Wi-Fi: Supported, 802.11 b/g/n (2.4 GHz and 5 GHz); 4G: Supported, Micro SIM card.
Battery runtime 4 h, field-replaceable, rechargeableClear analysis across complex near and distant targets
The 640 × 512 (327,680 pixels) infrared detector combines 25° × 19°, 50 Hz, and a -20 °C~150 °C, 100 °C~650 °C measurement range to deliver stable temperature detail for demanding industrial inspections.
See temperature distribution and locate anomalies quickly
The 640 × 512 (327,680 pixels) infrared detector and 25° × 19° field of view deliver non-contact measurement across -20 °C~150 °C, 100 °C~650 °C.
Turn field temperatures into actionable information
Rated accuracy is ±2 °C or ±2 %, whichever is greater. Measurement tools, color palettes and alarms help confirm hot spots, cold spots and selected areas.
Designed for sustained inspection and follow-up analysis
The camera provides 64 GB, maximum 128 GB storage and 4 h, field-replaceable, rechargeable battery runtime, together with IP54 protection and 2 m drop resistance.
Watch HM-TP7XY-ABCDEF(640, 4G) in operation and inspection workflows
Use the product video to explore the HM-TP7XY-ABCDEF(640, 4G) exterior, essential controls, and typical on-site thermographic inspection applications.
From routine inspection to professional thermal analysis
The HM-TP7XY-ABCDEF(640, 4G) supports field tasks that require fast detection of abnormal heat, clear documentation of temperature distribution and evidence-based fault assessment.
Power & Utilities
- Substation and distribution inspection
- Connections and switchgear
- Route-based condition data collection
Advanced Manufacturing
- Motors, bearings and drivetrains
- Process equipment and production lines
- Detailed thermal analysis of complex targets
Research & Professional Inspection
- R&D and material testing
- Long-distance and small-target analysis
- Reporting and condition-data archiving
Thermal Imaging
- Detector Type
- uncooled detector
- Detector Resolution
- 640 × 512 (327,680 pixels)
- Spectral Range
- 7.5~14 μm
- NETD
- < 0.03 °C (30 mK@ 25 °C (77 °F, F# = 1.0)
- Maximum Image Size
- 640 × 480
- Infrared Image Resolution
- 640 × 480 (307,200pixels)
- Minimum Imaging Distance
- 0.3 m
- Field of View
- 25° × 19°
- Lens Options
- lens converter (0.5X: 48.2°(H)x 36°(V), 2X: 12.3°(H)x 9.3°(V), 3X: 7.6°(H)x 5.7°(V))
- Digital Zoom
- Supported, 1.0x~8.0xcontinuous
- Frame Rate
- 50 Hz
- Focusing Methods
- automatic, continuous autofocus, laser-assisted, touch and manual focus
- F-number
- F1.0
- Temperature Range
- -20 °C~150 °C, 100 °C~650 °C
- Accuracy
- ±2 °C or ±2 %, whichever is greater
- Spatial Resolution (IFOV)
- 0.68 mrad
- Super Resolution
- Supported, 1280 x 960 (1,228,800pixels)
- Focus Speed
- approximately 2 s
Visible Imaging
- Maximum Image Size
- 3264 × 2448
- Image Resolution
- 1600 x 1200
- Video Resolution
- 1600 x 1200
Image Display
- Display
- 4.3'' LCD capacitive touchscreen 800 × 480
- Image Mode
- thermal, visible, fusion and PIP, Blending
- Color Palettes
- White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain and Blue-Red
- Minimum Span in Manual AGC
- 2 °C
- Color Highlight
- high-temperature / low-temperature / interval highlight
System Features
- Laser Distance Measurement
- indoors: 50 m outdoors: 15 m
- Measurement Tools
- hot spot, cold spot, center spot, 10 points, 5 boxes, 5 circles and 1 measurement line
- External Optics Correction
- Supported
- UVC Screen Casting
- Supported, UVC Alarm Client
- Bluetooth
- Supported, Bluetooth4.2
- Positioning
- all imageSupportedoverlay GPS, BDS, GLONASS or GALILEOlocation data
- HDMI
- Supported
- Laser Pointer
- Supported, Class II, wavelength: 635 nm; power< 1 mW
- Image Capture
- thermal, visible, thermal-visible fusion and blending
- Video Recording
- thermal, visible, thermal-visible fusion and blending
- Work Light
- Supported
- Electronic Compass
- Supported
- Text Annotation
- Supported, 255English characters
- Inspection Routes
- Supported, used with HIKMICRO Inspector
- Interface Language
- Chinese
- 4G
- Supported, Micro SIM card
- Wi-Fi
- Supported, 802.11 b/g/n (2.4 GHz and 5 GHz)
- Storage
- 64 GB, maximum 128 GB
- Distance Accuracy
- 0.1 m
- Interfaces
- HDMI, USB Type-C
- Battery Type
- lithium-ion battery
- Battery Runtime
- 4 h, field-replaceable, rechargeable
Environmental & Physical
- Electromagnetic Compatibility (EMC)
- GB/T17799.2, GB 17799.3-2012
- Package Contents
- 2 batteries (excluding the battery installed in the camera), charging dock × 1, power adapter × 1, hand strap × 1, USB cable × 1, HDMI cable × 1, SD card × 1, lens cap × 1, accessory pouch × 1, manual × 1, rugged impact-resistant carrying case × 1
- Operating Temperature & Humidity
- -20 °C~50 °C, ≤95%
- Ingress Protection
- IP54
- Drop Protection
- 2 m
- Weight
- approximately 1075 g (with lens, including battery)
- Dimensions
- 284.7 mm × 120.6 mm × 124.5 mm
Thermography & Analysis
- On-device Analysis
- Supported
Data Storage
- Voice Annotation
- Supported (60 s)
Client Software
- PC Software
- HIKMICRO Analyzer, Inspector
- Mobile App
- HIKMICRO Viewer
- Screen Casting
- UVC Alarm Client
HM-TP7XY-ABCDEF(640, 4G) ordering information
Standard package: 2 batteries (excluding the battery installed in the camera), charging dock × 1, power adapter × 1, hand strap × 1, USB cable × 1, HDMI cable × 1, SD card × 1, lens cap × 1, accessory pouch × 1, manual × 1, rugged impact-resistant carrying case × 1
