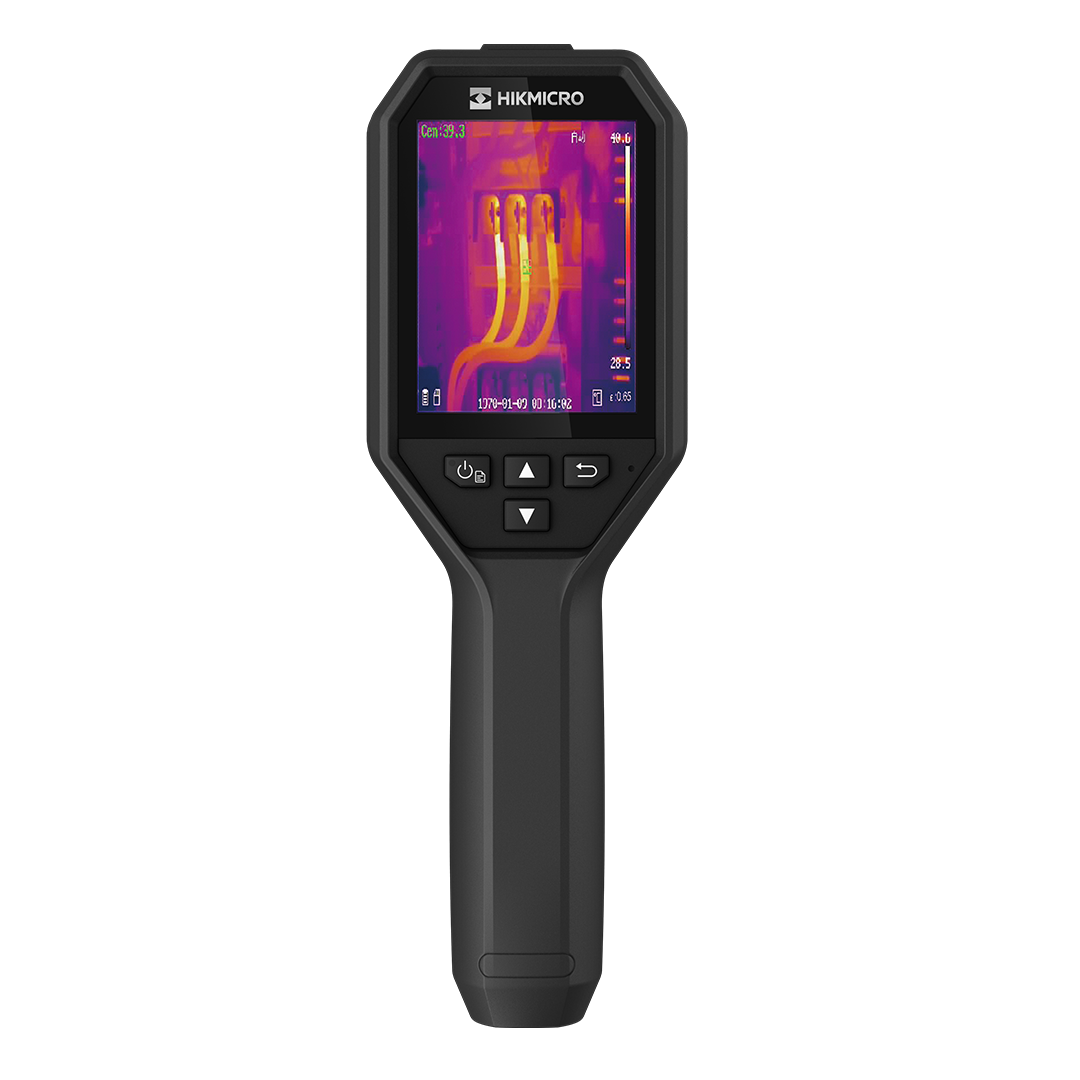

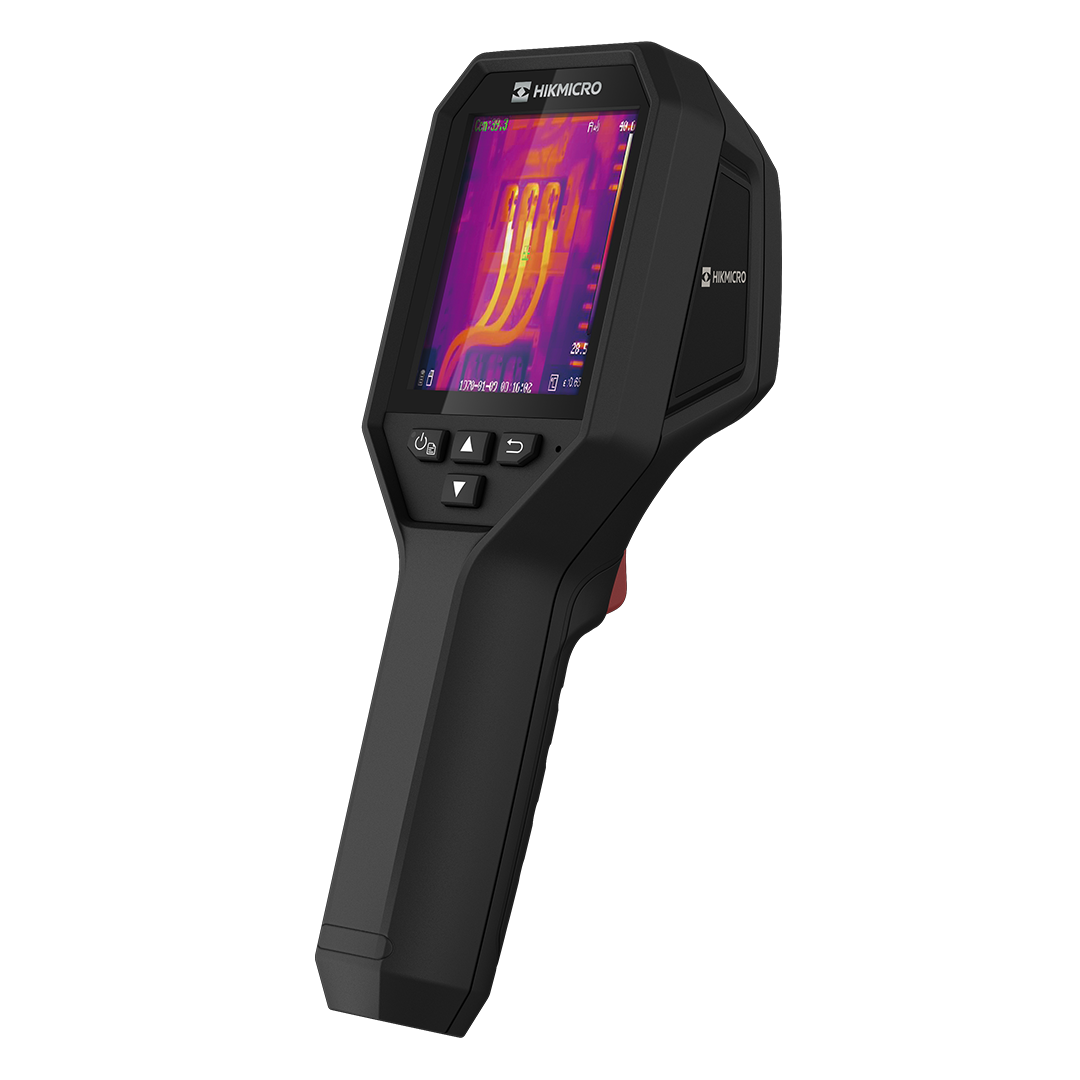

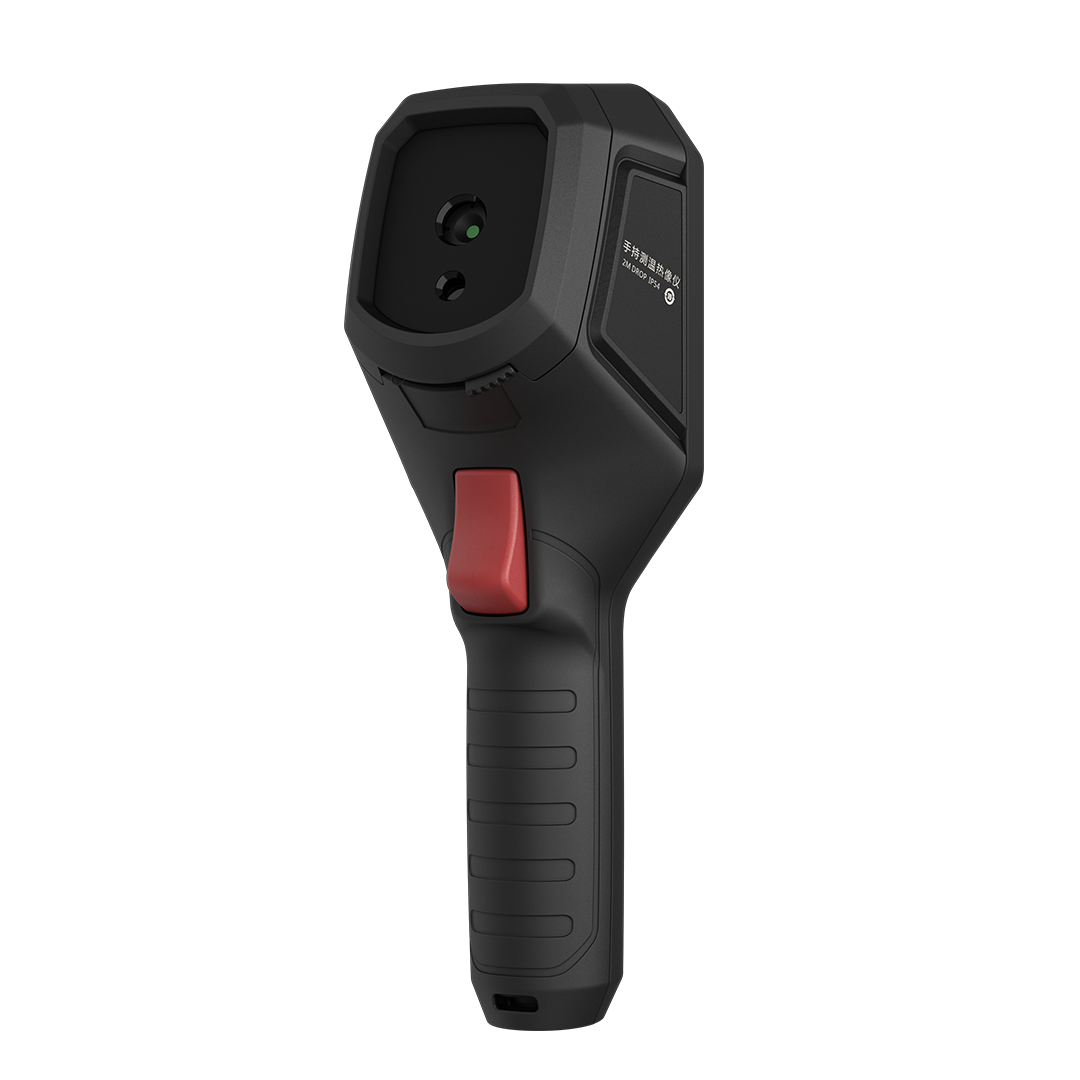

HM-TP5XY-ABCDEF(160) Handheld Thermographic Imager
HIKMICRO · HM-TP5XY-ABCDEF(160)
HM-TP5XY-ABCDEF(160) Handheld Thermography Camera
Industrial Thermography | Fault Detection | Professional Thermal Imaging
Core capabilities for field inspection
The HM-TP5XY-ABCDEF(160) combines non-contact thermography, temperature measurement and field-ready documentation to help locate abnormal heat quickly and support follow-up analysis.
Clear thermal detail
A 160 × 120 detector with a 25Hz frame rate helps reveal temperature distribution across the target.
NETD < 50mk (@25°C,F#=1.0)Wide inspection coverage
The -20 °C～550 °C temperature range supports routine equipment inspection, fault location and preventive maintenance.
Accuracy ±2°C or of reading ±2%(whichever is greater)Built for field observation
A 32.9° × 44.4° field of view and a focus configuration of fixed focus balance scene coverage with target detail.
IR resolution 160 × 120Information at a glance
The 3.2inch LCD display (320 × 240) display keeps thermal imagery and measurement data easy to review on site.
Measurement tools: 3 measurement spots (center spot, maximum temperature, minimum temperature)Ready for industrial sites
IP54 protection, 2m drop resistance and a weight of <360g (including battery) support mobile field use.
Dimensions 221.7mm × 73.5mm × 123.8mmCapture, transfer and analyze
Storage: 16 GB built-in eMMC; Wi-Fi: See specifications; 4G: Not supported.
Battery runtime >6 h@25°CSee the full temperature picture at a glance
The 32.9° × 44.4° and 160 × 120 infrared detector bring the thermal distribution and measurement results into one view, helping inspectors identify hot spots, cold spots and abnormal areas quickly.
See temperature distribution and locate anomalies quickly
The 160 × 120 infrared detector and 32.9° × 44.4° field of view deliver non-contact measurement across -20 °C～550 °C.
Turn field temperatures into actionable information
Rated accuracy is ±2°C or of reading ±2%(whichever is greater). Measurement tools, color palettes and alarms help confirm hot spots, cold spots and selected areas.
Designed for sustained inspection and follow-up analysis
The camera provides 16 GB built-in eMMC storage and >6 h@25°C battery runtime, together with IP54 protection and 2m drop resistance.
Watch HM-TP5XY-ABCDEF(160) in operation and inspection workflows
Use the product video to explore the HM-TP5XY-ABCDEF(160) exterior, essential controls, and typical on-site thermographic inspection applications.
From routine inspection to professional thermal analysis
The HM-TP5XY-ABCDEF(160) supports field tasks that require fast detection of abnormal heat, clear documentation of temperature distribution and evidence-based fault assessment.
Electrical Inspection
- Panels and busbar temperature rise
- Terminals and circuit breakers
- Routine preventive maintenance
HVAC & Building
- Underfloor-heating checks
- Pipe leaks and insulation
- Heating and cooling diagnostics
Equipment & Automotive
- Motors, pumps and bearings
- Vehicle electrical and mechanical systems
- On-site temperature documentation
Thermal Imaging
- Detector Type
- uncooled vanadium oxide microbolometer
- Detector Resolution
- 160 × 120
- Spectral Range
- 7.5~14μm
- NETD
- < 50mk (@25°C,F#=1.0)
- Thermal Focal Length
- 3.6mm
- Maximum Image Size
- 160 × 120
- Minimum Imaging Distance
- 0.3m
- Field of View
- 32.9° × 44.4°
- Frame Rate
- 25Hz
- Pixel Pitch
- 17um
- Distance-to-Spot Ratio
- 60:1
- Minimum Measurement Distance
- 0.3m
- F-number
- F1.1
- Temperature Units
- Celsius, Fahrenheit and Kelvin
- Temperature Range
- -20 °C～550 °C
- Accuracy
- ±2°C or of reading ±2%(whichever is greater)
- Spatial Resolution (IFOV)
- 4.85mrad
Image Display
- Display
- 3.2inch LCD display (320 × 240)
- Image Mode
- White Hot, Black Hot, Ironbow and Rainbow
- Maximum Image Size
- 160 × 120
- Frame Rate
- 25Hz
- Image Format
- radiometric JPEG with offline analysis in the client software
System Features
- Laser Pointer
- indicates the measurement area and is activated by the trigger
- Measurement Tools
- 3 measurement spots (center spot, maximum temperature, minimum temperature)
- Storage
- 16 GB built-in emmc
- Focus Type
- fixed focus
- Power Interface
- Type-C direct charging
- Battery Type
- rechargeablelithium-ion battery
- Charging Time
- <3H@25°C
- Battery Runtime
- >6 h@25°C
- Power Management
- adjustable; off, 5minutes, 10minutes, 20minutes
Environmental & Physical
- Package Contents
- power adapter × 1, USB cable × 1, wrist strap × 1, documentationx1
- Operating Temperature & Humidity
- -10 °C~50 °C, ≤95%
- Storage Temperature & Humidity
- -20 °C~60 °C, ≤95%
- Ingress Protection
- IP54
- Drop Protection
- 2m
- Weight
- <360g (including battery)
- Dimensions
- 221.7mm × 73.5mm × 123.8mm
- Accessories
- 5 V power adapter, USB cable, wrist strap, documentation
HM-TP5XY-ABCDEF(160) ordering information
Standard package: power adapter × 1, USB cable × 1, wrist strap × 1, documentationx1
