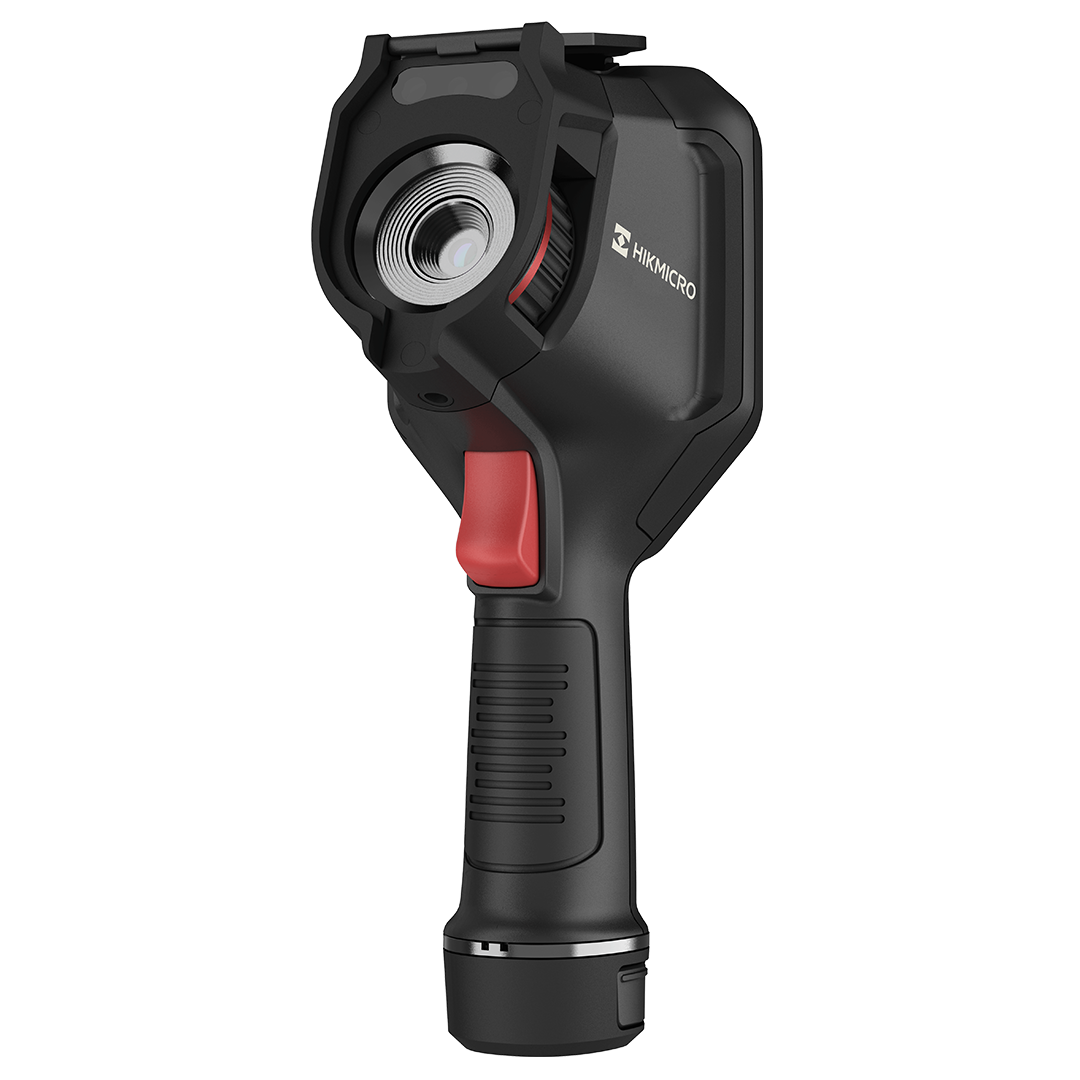

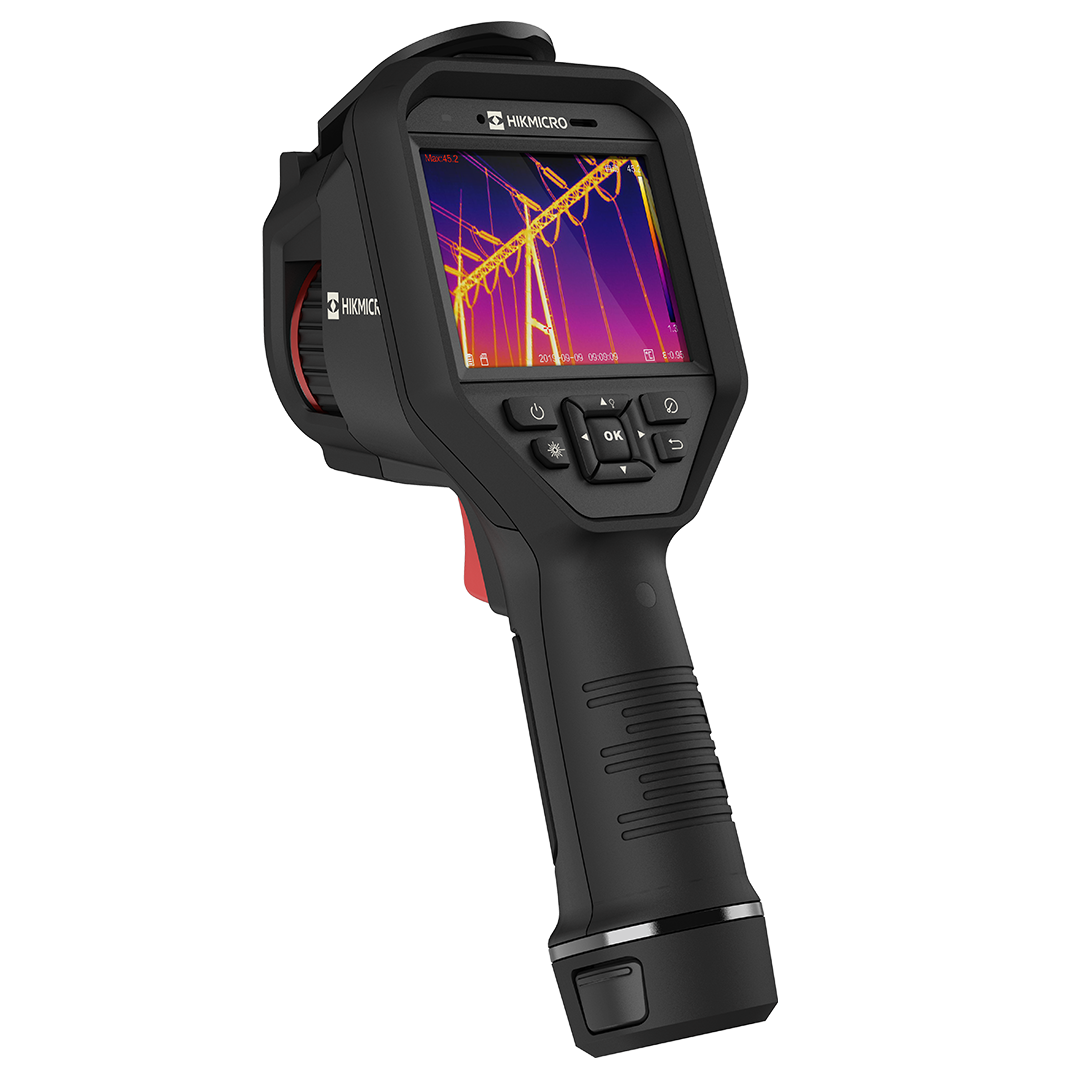

HM-TP2XY-ABCDEF(384) Handheld Thermographic Imager
HIKMICRO · HM-TP2XY-ABCDEF(384)
HM-TP2XY-ABCDEF(384) Handheld Thermography Camera
Industrial Thermography | Fault Detection | Professional Thermal Imaging
Core capabilities for field inspection
The HM-TP2XY-ABCDEF(384) combines non-contact thermography, temperature measurement and field-ready documentation to help locate abnormal heat quickly and support follow-up analysis.
Clear thermal detail
A 384 × 288 detector with a 25Hz frame rate helps reveal temperature distribution across the target.
NETD <50mk (@25°C, F#=1.0)Wide inspection coverage
The -20°~550° temperature range supports routine equipment inspection, fault location and preventive maintenance.
Accuracy ±2° or ±2%, whichever is greaterBuilt for field observation
A 37.5° × 28.5° field of view and a focus configuration of model-dependent (fixed or manual focus) balance scene coverage with target detail.
IR resolution 384 × 288Information at a glance

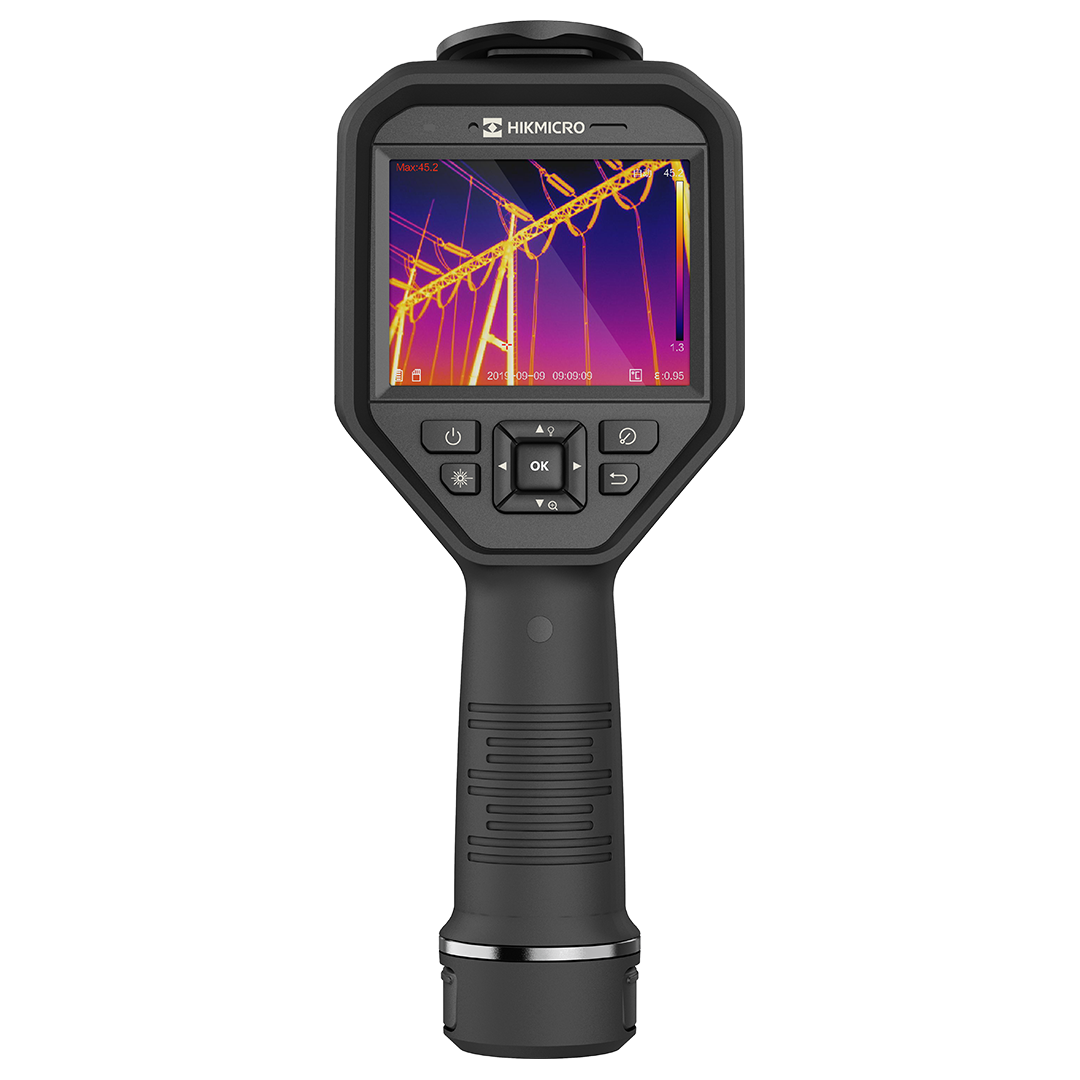

The 3.5'' LCD capacitive touchscreen 640 × 480 display keeps thermal imagery and measurement data easy to review on site.
Measurement tools: point, line, circle and box measurement toolsReady for industrial sites
IP54 protection, 2m drop resistance and a weight of 660g support mobile field use.
Dimensions 244mm × 100mm × 104mmCapture, transfer and analyze
Storage: 64G; Wi-Fi: Supported; 4G: Not supported.
Battery runtime 4h, field-replaceable, rechargeableSee the detail and locate faults faster
The high-sensitivity infrared detector and 37.5° × 28.5° support non-contact measurement across -20°~550°. A specified accuracy of ±2° or ±2%, whichever is greater helps teams assess anomalies with confidence.
See temperature distribution and locate anomalies quickly
The 384 × 288 infrared detector and 37.5° × 28.5° field of view deliver non-contact measurement across -20°~550°.
Turn field temperatures into actionable information
Rated accuracy is ±2° or ±2%, whichever is greater. Measurement tools, color palettes and alarms help confirm hot spots, cold spots and selected areas.
Designed for sustained inspection and follow-up analysis
The camera provides 64G storage and 4h, field-replaceable, rechargeable battery runtime, together with IP54 protection and 2m drop resistance.
Watch HM-TP2XY-ABCDEF(384) in operation and inspection workflows
Use the product video to explore the HM-TP2XY-ABCDEF(384) exterior, essential controls, and typical on-site thermographic inspection applications.
From routine inspection to professional thermal analysis
The HM-TP2XY-ABCDEF(384) supports field tasks that require fast detection of abnormal heat, clear documentation of temperature distribution and evidence-based fault assessment.
Power & Energy
- Panels, transformers and terminals
- Oil, gas, mining and metallurgy
- Rail transport and public infrastructure
Industrial Manufacturing
- Motors, pumps and bearings
- Laser, die-casting and heavy machinery
- Preventive maintenance and diagnostics
Building & Research
- Energy efficiency and leak detection
- Property inspection and insurance surveys
- Higher education and laboratory analysis
Thermal Imaging
- Detector Type
- uncooled detector
- Spectral Range
- 7.5~14μm
- NETD
- <50mk (@25°C, F#=1.0)
- Maximum Image Size
- 384 × 288
- Thermal Lens Focal Length
- 9.7mm
- Field of View
- 37.5° × 28.5°
- Digital Zoom
- 1 ×, 2 ×, 4 ×, 8 ×
- Frame Rate
- 25Hz
- F-number
- F1.0
- Temperature Range
- -20°~550°
- Accuracy
- ±2° or ±2%, whichever is greater
Visible Imaging
- Maximum Image Size
- 3264 × 2448
- Image Resolution
- 1600 × 1200
- Video Resolution
- 1600 × 1200
Image Display
- Display
- 3.5'' LCD capacitive touchscreen 640 × 480
- Image Mode
- SupportedRainbow, 7 color palettes including Ironbow
- Display Modes
- visible, thermal, thermal-visible fusion and PIP
System Features
- Laser Pointer
- Supported
- Image Capture
- thermal, visible, thermal-visiblefusion, PIP
- Video Recording
- thermal, visible, thermal-visiblefusion, PIP
- Work Light
- Supported
- Text Annotation
- Supported
- Voice Annotation
- Supported (60s)
- Interface Language
- Chinese
- Wi-Fi
- Supported
- Storage
- 64G
- Interfaces
- Type-C
- Battery Type
- lithium-ion battery
- Battery Runtime
- 4h, field-replaceable, rechargeable
Environmental & Physical
- Operating Temperature & Humidity
- -10°C ~50°C, ≤95%
- Ingress Protection
- IP54
- Drop Protection
- 2m
- Weight
- 660g
- Dimensions
- 244mm × 100mm × 104mm
- Accessories
- battery, user manual, charging dock, charger, USB cable, rugged impact-resistant carrying case
HM-TP2XY-ABCDEF(384) ordering information
Standard package: battery, user manual, charging dock, charger, USB cable, rugged impact-resistant carrying case
