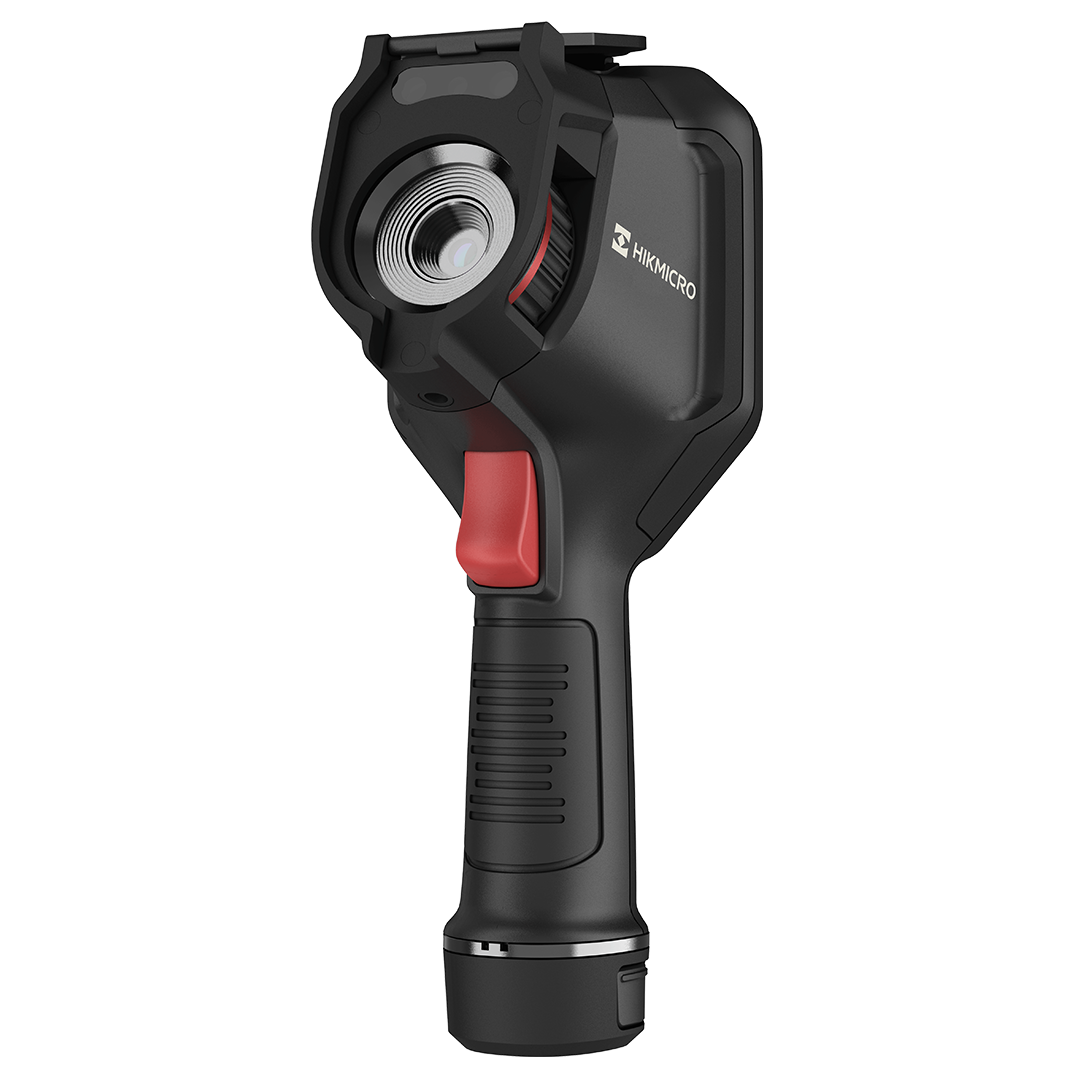

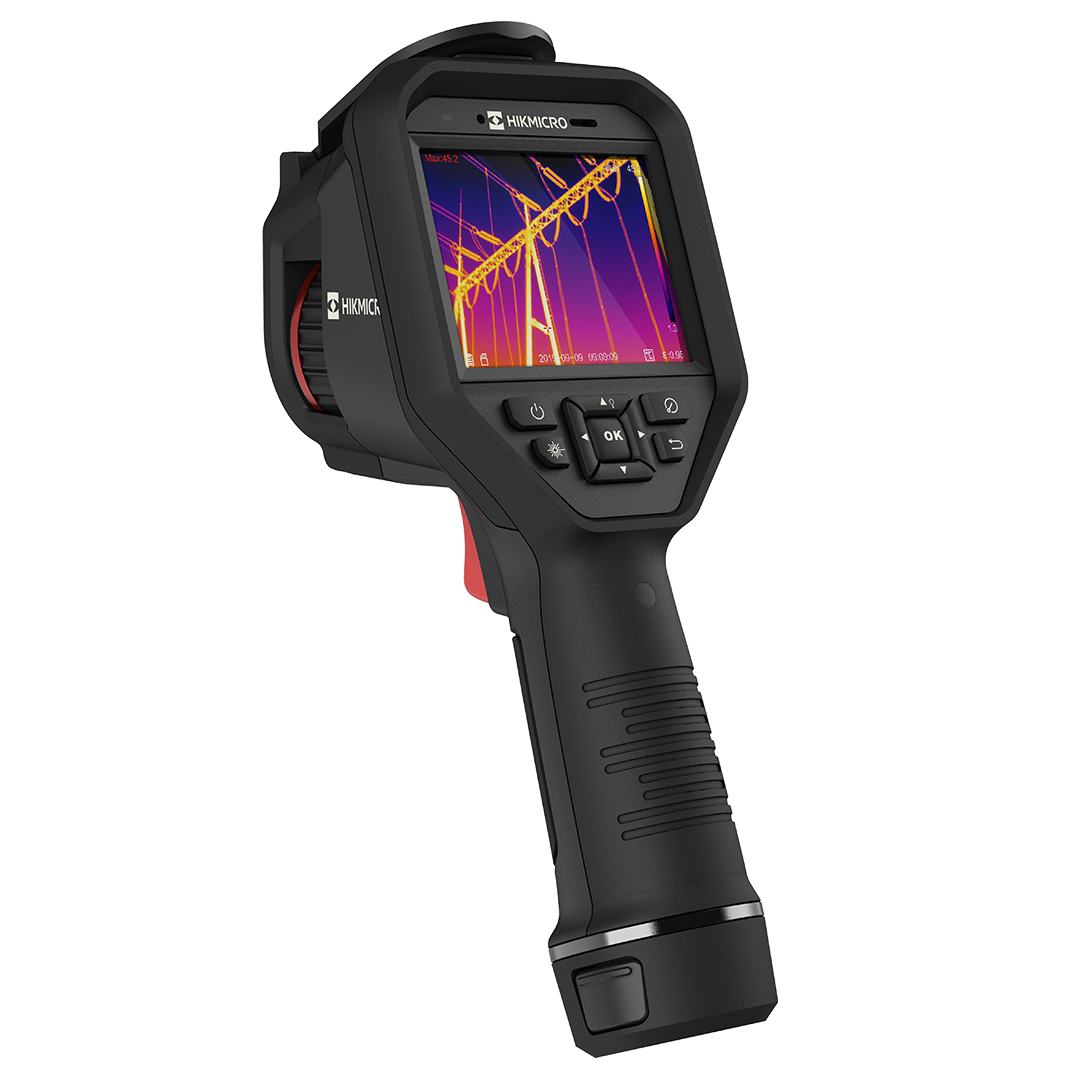

HM-TP2XY-ABCDEF(640) Temperature Measurement Thermal Imager
HIKMICRO · HM-TP2XY-ABCDEF(640)
HM-TP2XY-ABCDEF(640) Handheld Thermography Camera
Industrial Thermography | Fault Detection | Professional Thermal Imaging
Core capabilities for field inspection
The HM-TP2XY-ABCDEF(640) combines non-contact thermography, temperature measurement and field-ready documentation to help locate abnormal heat quickly and support follow-up analysis.
Clear thermal detail
A 640*480 detector with a 25Hz frame rate helps reveal temperature distribution across the target.
NETD <50mk (@25 °C, F#=1.0)Wide inspection coverage
The -20°C~650°C temperature range supports routine equipment inspection, fault location and preventive maintenance.
Accuracy ±2° or ±2%, whichever is greaterBuilt for field observation
A 41.9° × 33.3° field of view and a focus configuration of model-dependent (fixed or manual focus) balance scene coverage with target detail.
IR resolution 640*480Information at a glance

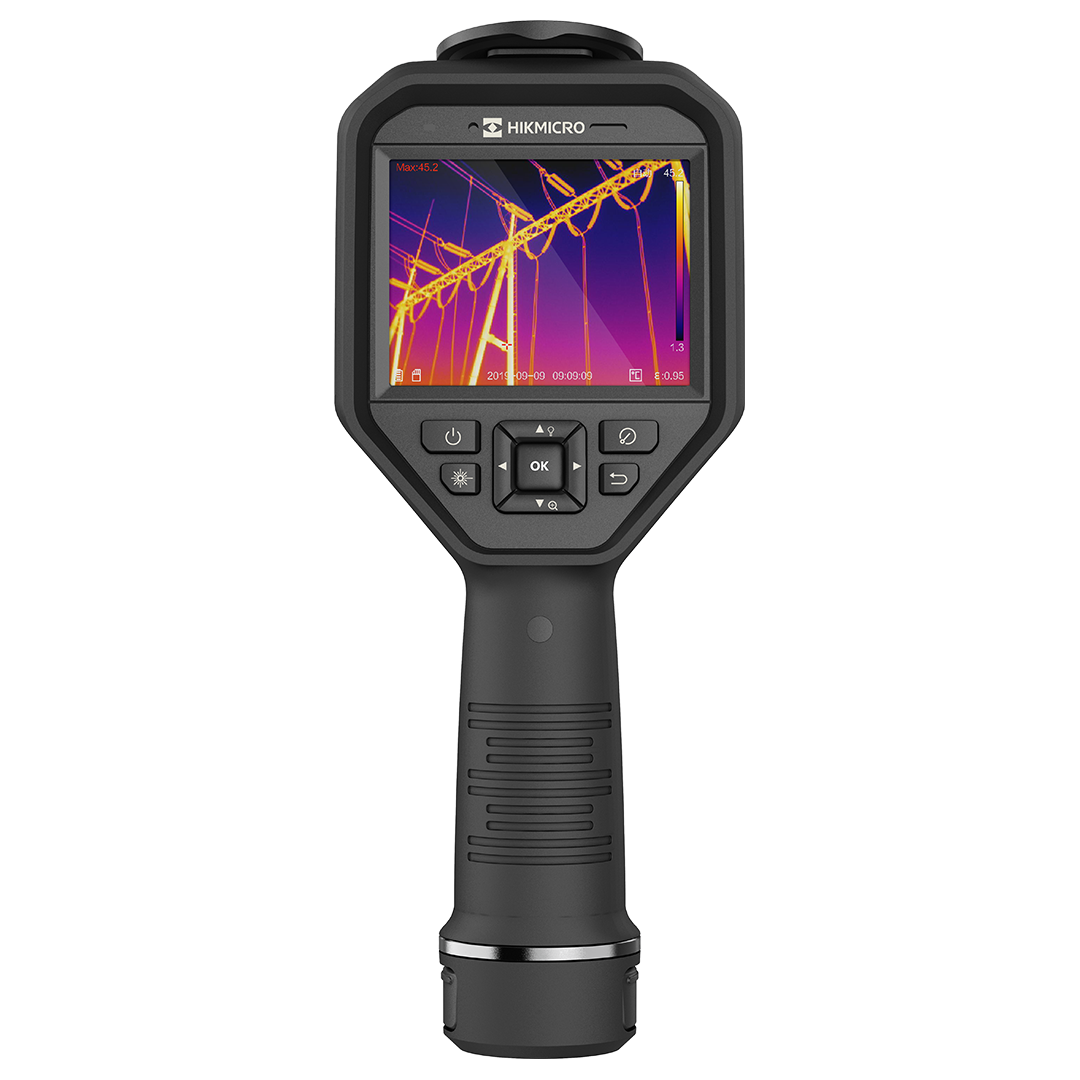

The 3.5'' LCD capacitive touchscreen 640 × 480 display keeps thermal imagery and measurement data easy to review on site.
Measurement tools: point, line, circle and box measurement toolsReady for industrial sites
IP54 protection, 2m drop resistance and a weight of 660g support mobile field use.
Dimensions 244mm × 100mm × 104mmCapture, transfer and analyze
Storage: 64GB; Wi-Fi: Supported; 4G: Not supported.
Battery runtime 4h, field-replaceable, rechargeableSee the detail and locate faults faster
The 640*480 infrared detector and 41.9° × 33.3° support non-contact measurement across -20°C~650°C. A specified accuracy of ±2° or ±2%, whichever is greater helps teams assess anomalies with confidence.
See temperature distribution and locate anomalies quickly
The 640*480 infrared detector and 41.9° × 33.3° field of view deliver non-contact measurement across -20°C~650°C.
Turn field temperatures into actionable information
Rated accuracy is ±2° or ±2%, whichever is greater. Measurement tools, color palettes and alarms help confirm hot spots, cold spots and selected areas.
Designed for sustained inspection and follow-up analysis
The camera provides 64GB storage and 4h, field-replaceable, rechargeable battery runtime, together with IP54 protection and 2m drop resistance.
Watch HM-TP2XY-ABCDEF(640) in operation and inspection workflows
Use the product video to explore the HM-TP2XY-ABCDEF(640) exterior, essential controls, and typical on-site thermographic inspection applications.
From routine inspection to professional thermal analysis
The HM-TP2XY-ABCDEF(640) supports field tasks that require fast detection of abnormal heat, clear documentation of temperature distribution and evidence-based fault assessment.
Power & Energy
- Panels, transformers and terminals
- Oil, gas, mining and metallurgy
- Rail transport and public infrastructure
Industrial Manufacturing
- Motors, pumps and bearings
- Laser, die-casting and heavy machinery
- Preventive maintenance and diagnostics
Building & Research
- Energy efficiency and leak detection
- Property inspection and insurance surveys
- Higher education and laboratory analysis
Thermal Imaging
- Detector Type
- uncooled detector
- Spectral Range
- 7.5~14μm
- NETD
- <50mk (@25 °C, F#=1.0)
- Maximum Image Size
- 640 × 480
- Thermal Lens Focal Length
- 15 mm
- Field of View
- 41.9° × 33.3°
- Digital Zoom
- 1.0~8.0continuous digital zoom
- Frame Rate
- 25Hz
- F-number
- F1.0
- Temperature Range
- -20°C~650°C
- Accuracy
- ±2° or ±2%, whichever is greater
- Spatial Resolution (IFOV)
- 1.13 mrad
- Infrared Detector Resolution
- 640*480
- AI Super Resolution
- 1280*960
- Remote Album Transfer
- Supported
- Blending
- Supported
Visible Imaging
- Maximum Image Size
- 3264 × 2448
- Image Resolution
- 1600x1200
- Video Resolution
- 1600x1200
Image Display
- Display
- 3.5'' LCD capacitive touchscreen 640 × 480
- Image Mode
- SupportedWhite Hot, Black Hot, Rainbow, Ironbow, Red Hot, fusion, Rain7 palettes with additional two-stage high-temperature highlighting
- Display Modes
- visible, thermal, thermal-visible fusion, PIP and blending
System Features
- Alarm Linkage
- audible and visual alarm
- Bluetooth
- Supported
- Laser Pointer
- Supported
- Image Capture
- thermal, visible, thermal-visiblefusion, PIP
- Video Recording
- thermal, visible, thermal-visiblefusion, PIP
- Work Light
- Supported
- Text Annotation
- Supported
- Interface Language
- Chinese
- Inspection Routes
- Supported
- Wi-Fi
- Supported
- Package Contents
- 2 batteries, charging dock × 1, power adapter × 1, strap × 1, USB cable × 1, SD card × 1, manual × 1, rugged impact-resistant carrying case × 1
- Storage
- 64GB
- Interfaces
- TYPE-C
- Battery Type
- lithium-ion battery
- Battery Runtime
- 4h, field-replaceable, rechargeable
Environmental & Physical
- Operating Temperature & Humidity
- -20°C~50°C, ≤95%
- Ingress Protection
- IP54
- Drop Protection
- 2m
- Weight
- 660g
- Dimensions
- 244mm × 100mm × 104mm
- Electromagnetic Compatibility (EMC)
- GB/T17799.2, GB 17799.3-2012
Data Storage
- Voice Annotation
- Supported (60s)
Client Software
- PC Software
- HIKMICRO Analyzer, Inspector
- Mobile App
- HIKMICRO Viewer
- Screen Casting
- UVC Alarm Client
HM-TP2XY-ABCDEF(640) ordering information
Standard package: 2 batteries, charging dock × 1, power adapter × 1, strap × 1, USB cable × 1, SD card × 1, manual × 1, rugged impact-resistant carrying case × 1
