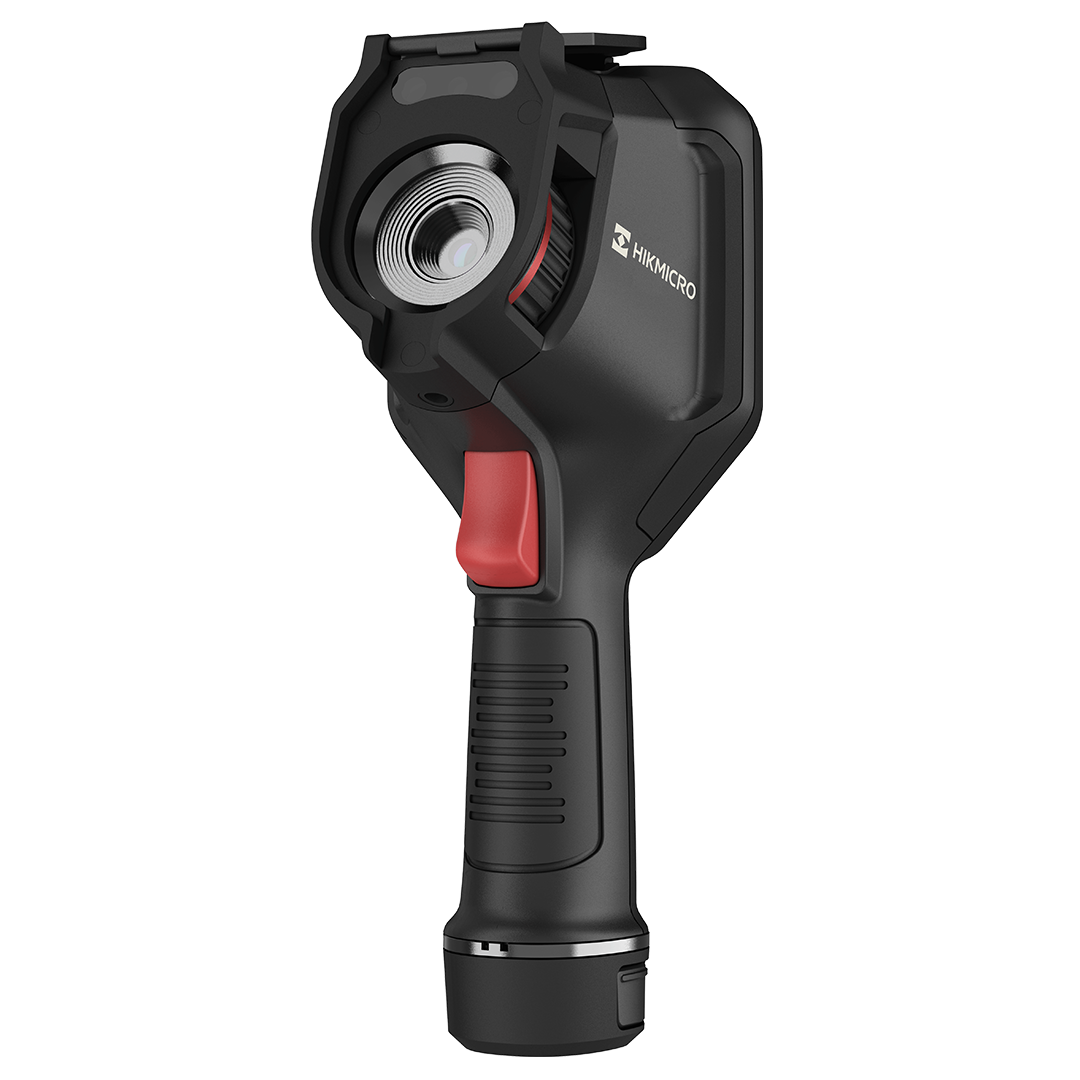

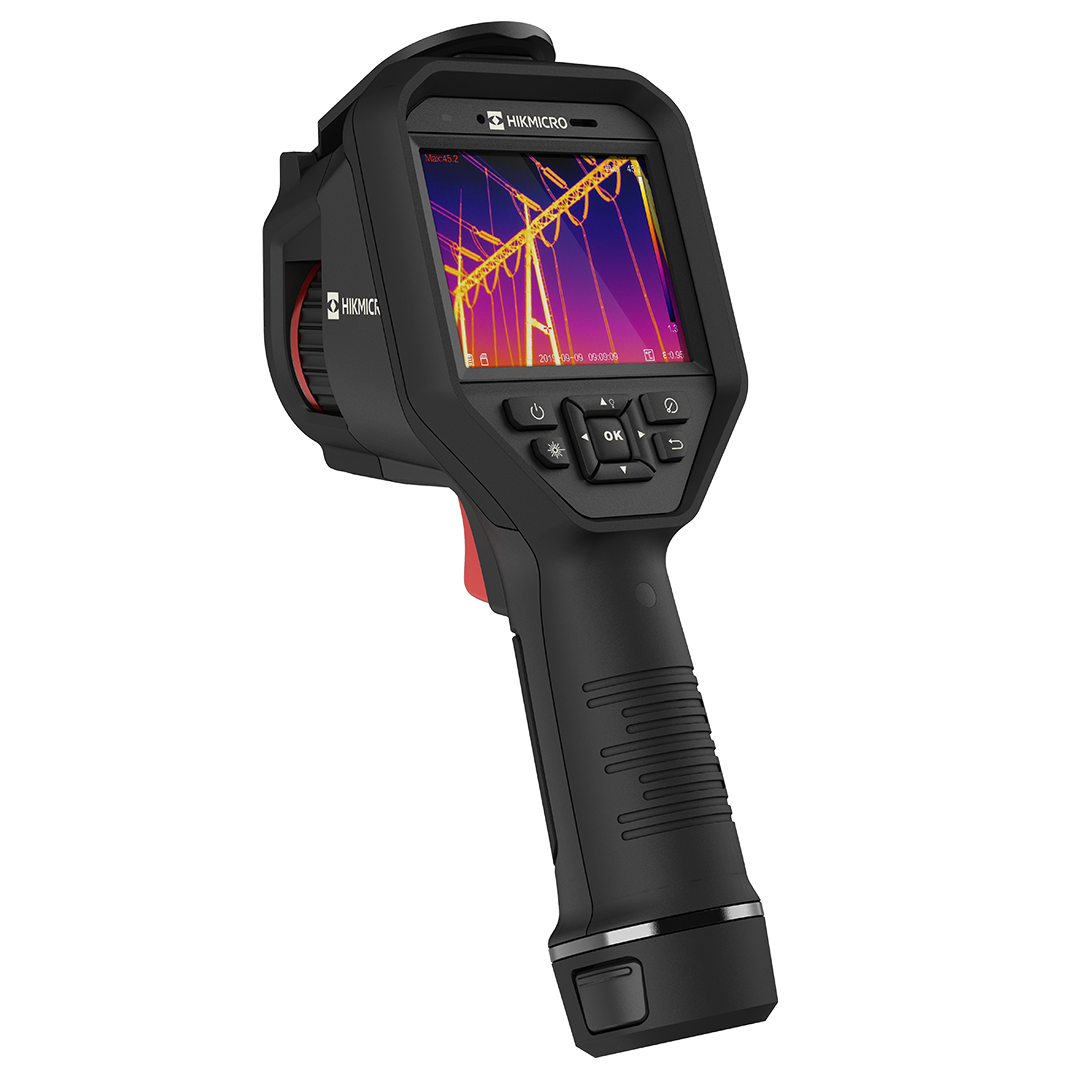

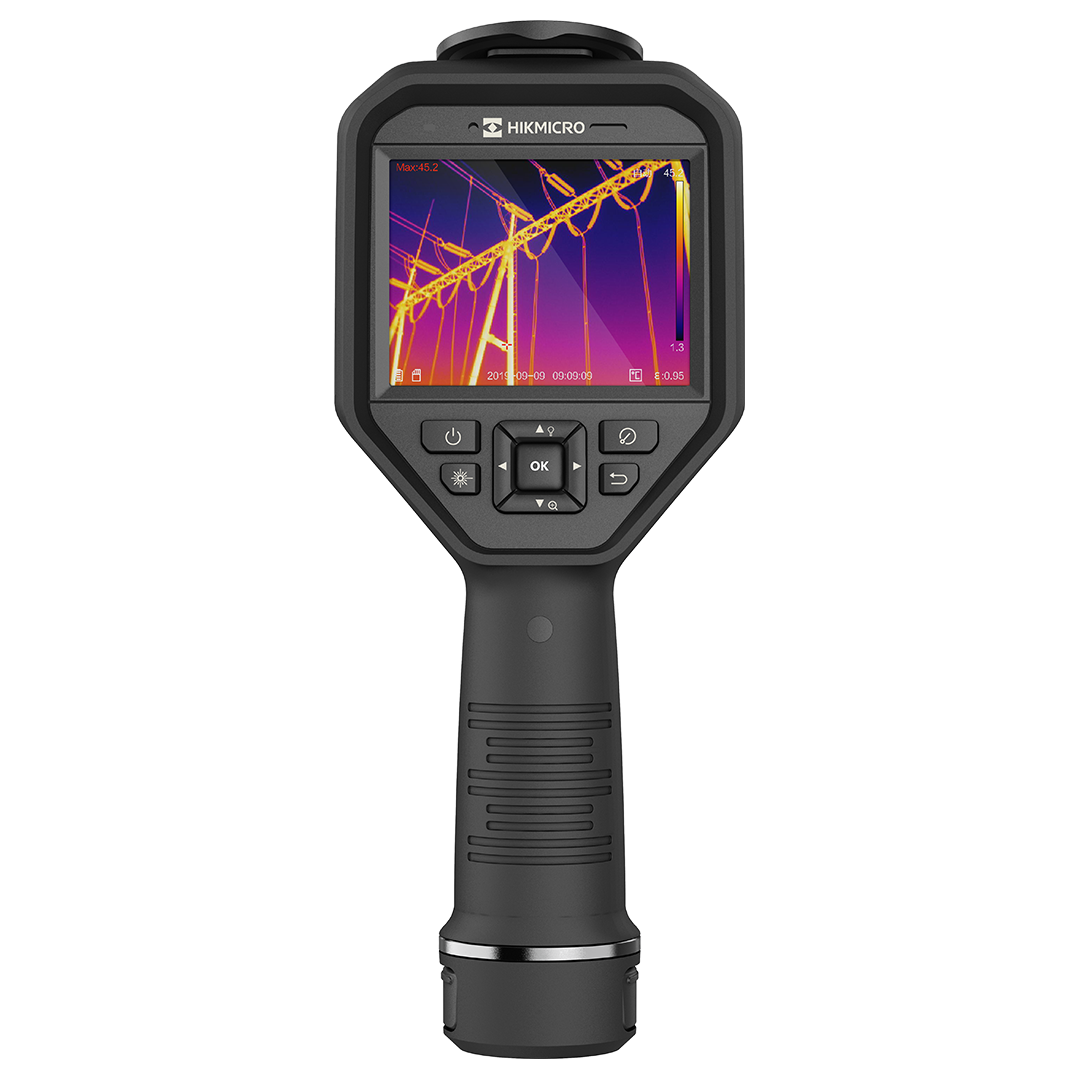

HM-TP2XY-ABCDEF(160) Handheld Thermal Imaging Thermometer
HIKMICRO · HM-TP2XY-ABCDEF(160)
HM-TP2XY-ABCDEF(160) Handheld Thermography Camera
Industrial Thermography | Fault Detection | Professional Thermal Imaging
Core capabilities for field inspection
The HM-TP2XY-ABCDEF(160) combines non-contact thermography, temperature measurement and field-ready documentation to help locate abnormal heat quickly and support follow-up analysis.
Clear thermal detail
A 160 × 120 detector with a 25 frame rate helps reveal temperature distribution across the target.
NETD <50mk (@25°C,F#=1.0)Wide inspection coverage
The -20°C~550°C temperature range supports routine equipment inspection, fault location and preventive maintenance.
Accuracy ±2°Cor of reading ±2%(whichever is greater)Built for field observation
A 25° × 19° field of view and a focus configuration of model-dependent (fixed or manual focus) balance scene coverage with target detail.
IR resolution 160 × 120Information at a glance
The See specifications display keeps thermal imagery and measurement data easy to review on site.
Measurement tools: 10 points, 3 boxes and 1 lineReady for industrial sites
IP54 protection, See specifications drop resistance and a weight of 660g support mobile field use.
Dimensions 240 × 100 × 150mmCapture, transfer and analyze
Storage: 16G (supports up to128G); Wi-Fi: See specifications; 4G: Not supported.
Battery runtime >4hSee the detail and locate faults faster
The 160 × 120 infrared detector and 25° × 19° support non-contact measurement across -20°C~550°C. A specified accuracy of ±2°Cor of reading ±2%(whichever is greater) helps teams assess anomalies with confidence.
See temperature distribution and locate anomalies quickly
The 160 × 120 infrared detector and 25° × 19° field of view deliver non-contact measurement across -20°C~550°C.
Turn field temperatures into actionable information
Rated accuracy is ±2°Cor of reading ±2%(whichever is greater). Measurement tools, color palettes and alarms help confirm hot spots, cold spots and selected areas.
Designed for sustained inspection and follow-up analysis
The camera provides 16G (supports up to128G) storage and >4h battery runtime, together with IP54 protection and See specifications drop resistance.
Watch HM-TP2XY-ABCDEF(160) in operation and inspection workflows
Use the product video to explore the HM-TP2XY-ABCDEF(160) exterior, essential controls, and typical on-site thermographic inspection applications.
From routine inspection to professional thermal analysis
The HM-TP2XY-ABCDEF(160) supports field tasks that require fast detection of abnormal heat, clear documentation of temperature distribution and evidence-based fault assessment.
Power & Energy
- Panels, transformers and terminals
- Oil, gas, mining and metallurgy
- Rail transport and public infrastructure
Industrial Manufacturing
- Motors, pumps and bearings
- Laser, die-casting and heavy machinery
- Preventive maintenance and diagnostics
Building & Research
- Energy efficiency and leak detection
- Property inspection and insurance surveys
- Higher education and laboratory analysis
Thermal Imaging
- Detector Resolution
- 160 × 120
- Spectral Range
- 7.5~14μm
- NETD
- <50mk (@25°C,F#=1.0)
- Focal Length / Minimum Imaging Distance
- 6.2mm/0.2m
- Field of View
- 25° × 19°
- Digital Zoom
- 1 ×, 2 ×, 4 ×, 8 ×
- Frame Rate
- 25
- Pixel Pitch
- 17μm
- F-number
- 1.1
- Temperature Units
- Celsius, Fahrenheit and Kelvin
- Temperature Range
- -20°C~550°C
- Accuracy
- ±2°Cor of reading ±2%(whichever is greater)
Visible Imaging
- Resolution
- 800W
- Focus Distance
- 0.9m
- Field of View
- 25 × 19°
- Image Resolution
- 1600 × 1200
- Video Resolution
- 1600 × 1200
- Maximum Image Size
- 3264 × 2448
System Features
- Measurement Tools
- 10 points, 3 boxes and 1 line
- Storage Expansion
- 16G (supports up to128G)
- Battery Type
- lithium battery
- Battery Runtime
- >4h
Environmental & Physical
- Menu Language
- Chinese
- Power
- continuous3W/maximum 4.2W
- Operating Temperature & Humidity
- -10°C ~50°C, <90% RH
- Storage Temperature & Humidity
- -40°C ~70°C, <90% RH
- Ingress Protection
- IP54
- Weight
- 660g
- Dimensions
- 240 × 100 × 150mm
- Accessories
- SD card, USB cable, adapter, protective case, battery, operating manual, charging dock
HM-TP2XY-ABCDEF(160) ordering information
Standard package: SD card, USB cable, adapter, protective case, battery, operating manual, charging dock
