Perfect light
Transmitted- and reflected-light LED illumination delivers stable, cool white light with an average lifetime of more than 20 years, reducing lamp-replacement costs.

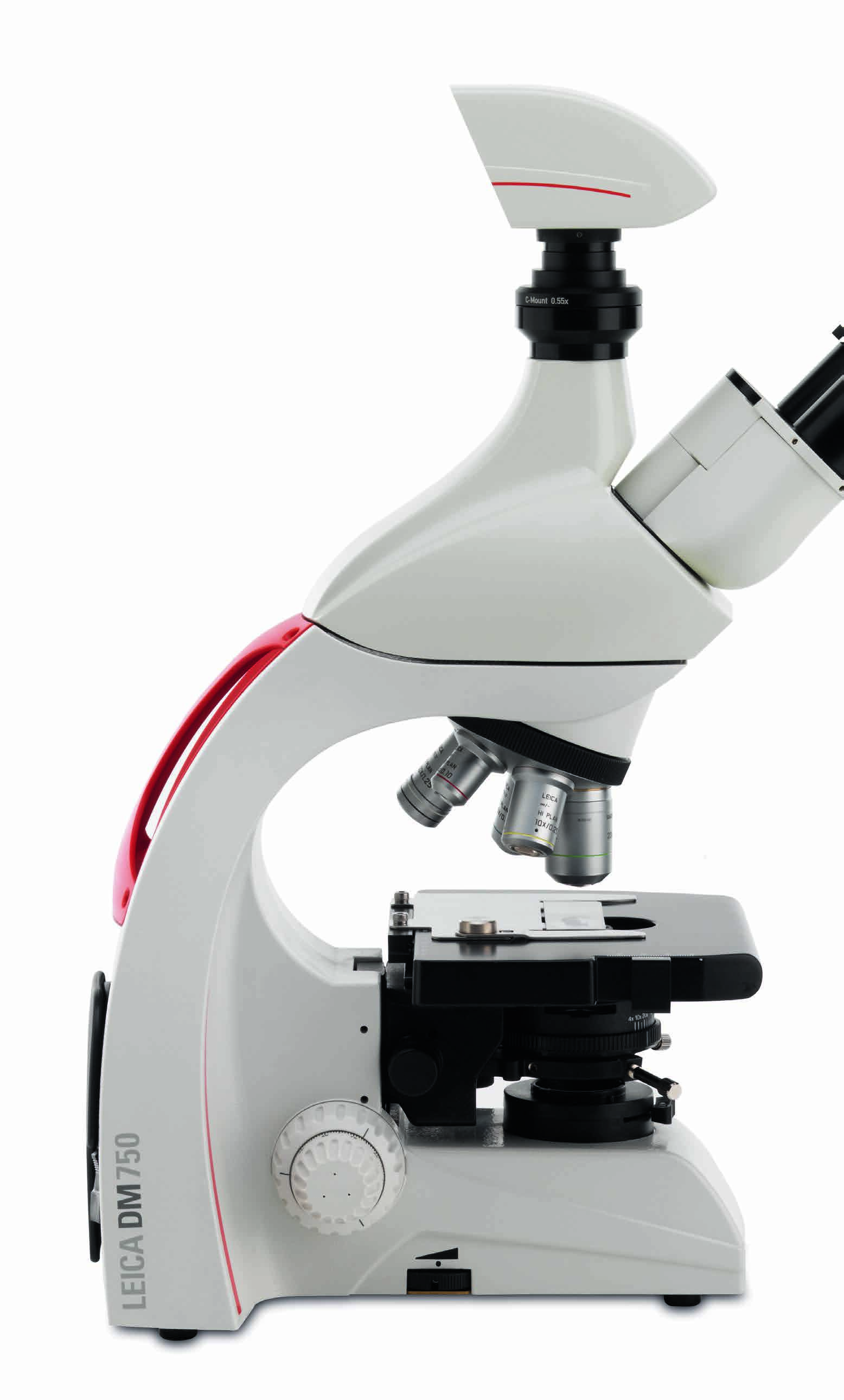

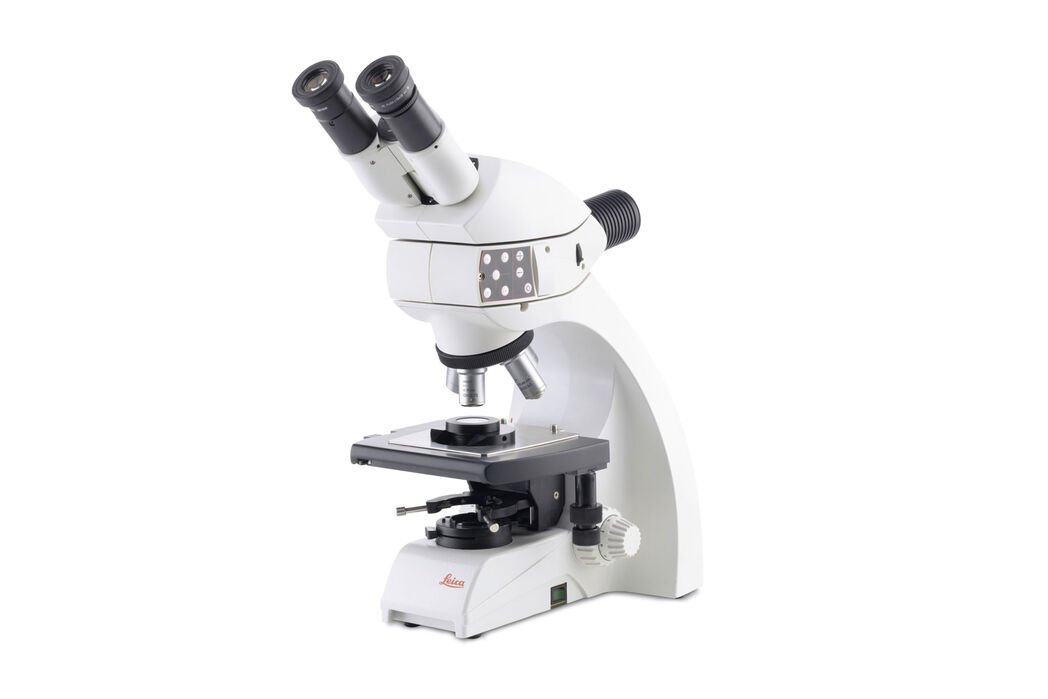

Leica DM750 M
Upright materials microscope
DM750 MBinocular materials microscope for education and metallography
The Leica DM750 M is an ideal microscope for basic materials applications in an industrial laboratory or material science course. Its versatile stage and reflected-light system work together to deliver high-quality images of demanding specimens.
The mechanical stage can be used for transmitted and reflected light and accepts specimen holders for different sample diameters. The dedicated LED reflected-light illuminator provides brightfield, polarized light, and oblique illumination.
50–1000×Magnification range
4 / 5Nosepiece positions
> 20 yearsAverage LED lifetime
25 / 30 mmSpecimen-holder diameter
Key features
A stable, clear foundation for materials observation
Up to 1000×
Stands with a 4- or 5-position nosepiece cover magnifications from 50× to 1000× for education and basic materials work.
Multiple reflected-light methods
Brightfield, polarized light, four-segment oblique illumination, and an aperture diaphragm provide flexibility and speed for routine laboratory work.
Easy specimen handling
The universal industrial cross stage supports reflected and transmitted light and accepts 25 mm or 30 mm specimen holders.
Ergonomic viewing
Four viewing-tube options and 10× eyepieces with a 20 mm field of view help adapt the microscope to different users.
Leica imaging
A range of Leica microscope cameras provides high-resolution images and fast live views for documentation and communication.
Observe and document
From sample illumination to recorded results
Illumination and contrast
Observe different materials with one system
The LED reflected-light illuminator combines brightfield, polarized light, and four-segment oblique illumination in a compact system. The aperture diaphragm and selectable illumination direction help optimize contrast for polished, etched, and structured surfaces.
Education and routine work
Make observation easier to understand and repeat

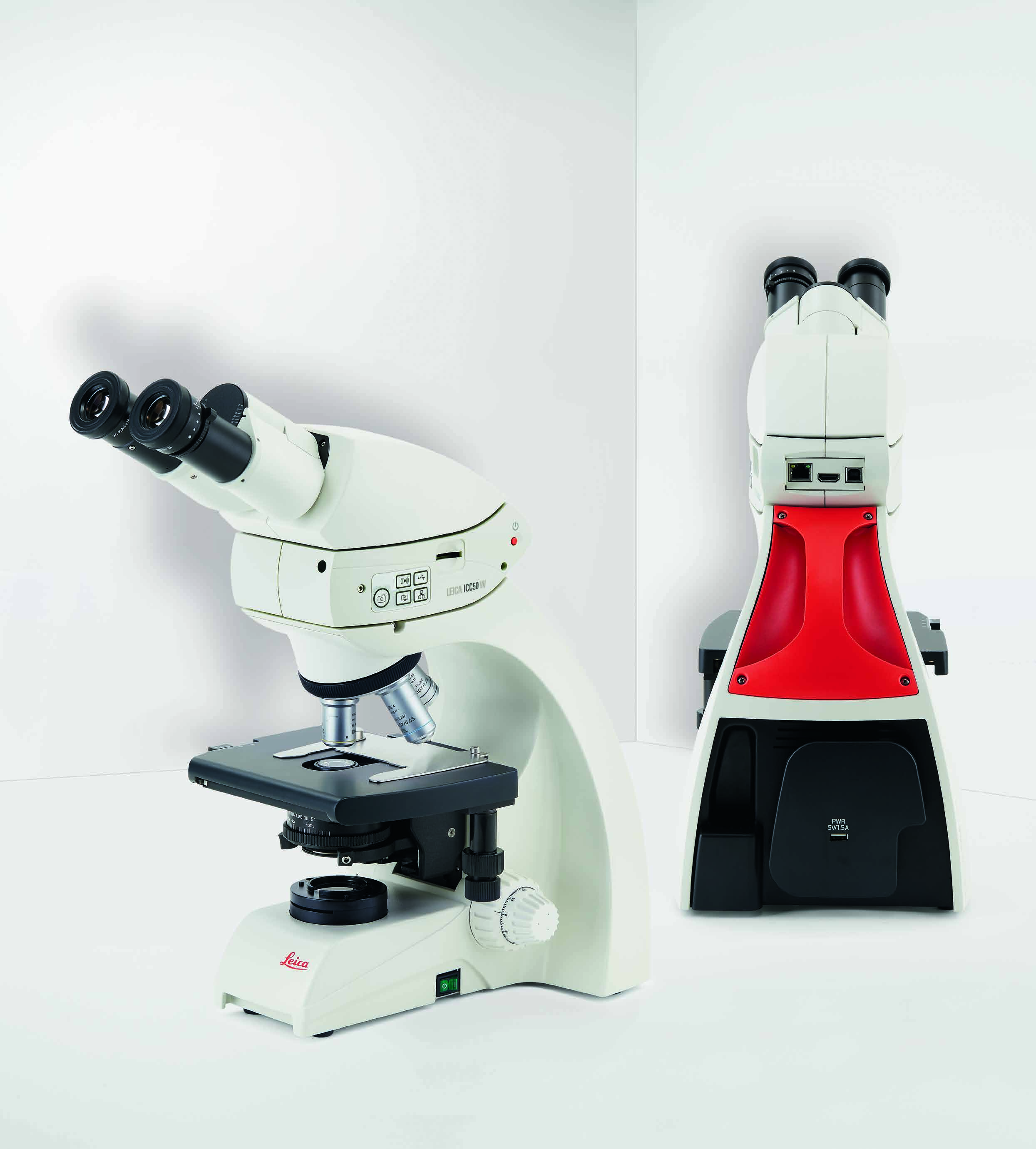

The Leica DM500/DM750 brochure illustrates an education workflow built around reliable optics, durable construction, and intuitive operation. The DM750 M extends this approach to basic materials applications so users can focus on the specimen and the result.

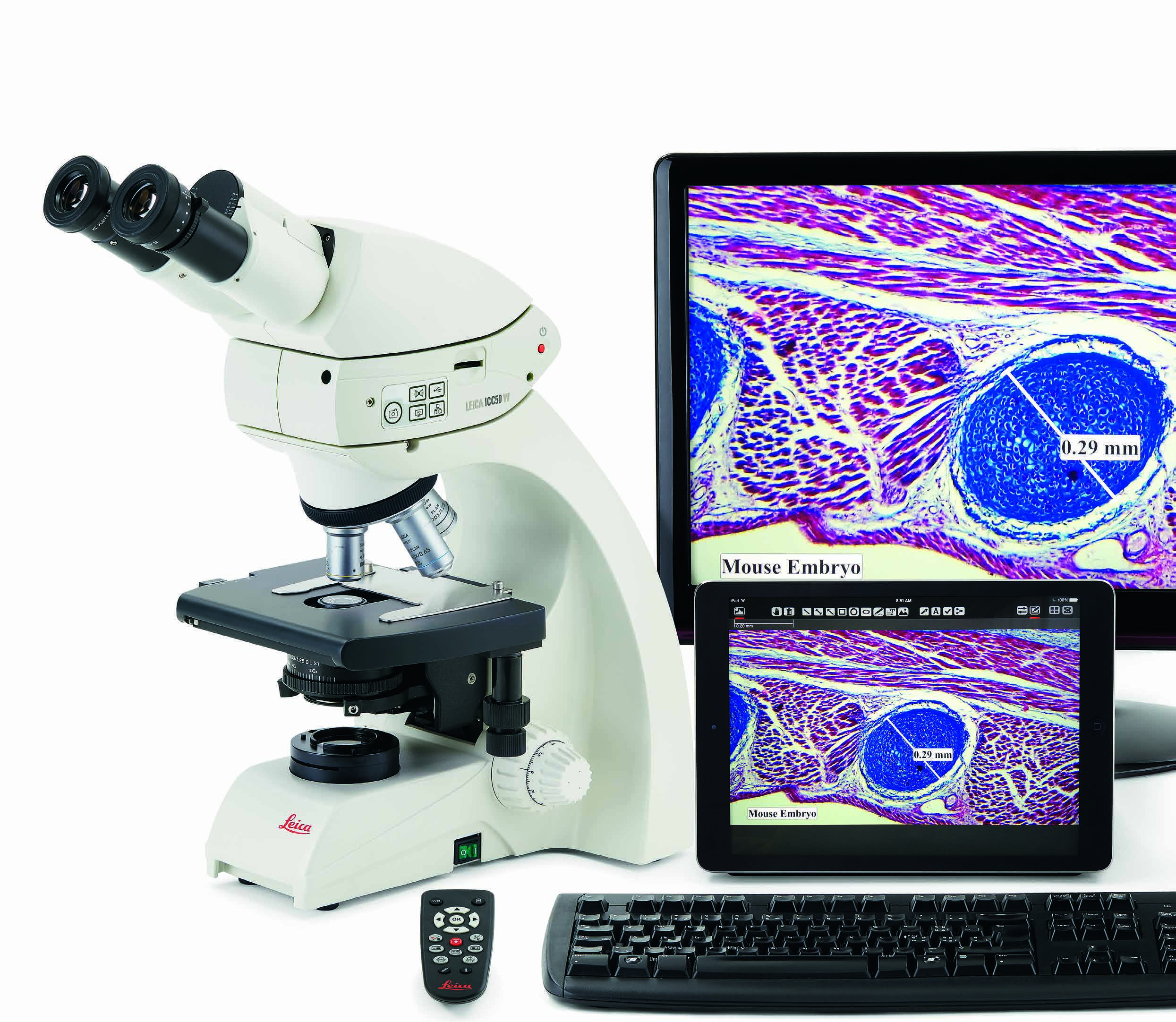

Image documentation
Extend visual inspection into digital records
With Leica microscope cameras and software, users can perform live observation, image capture, annotation, measurement, and documentation. Camera interfaces and software modules can be selected for classroom or laboratory workflows.
Media
Product, teaching, and imaging workflows
Applications
For education, basic materials work, and routine inspection
Industrial laboratories
Basic materials observation, surface inspection, and routine quality records.
Materials-science courses
Demonstrate contrast differences from brightfield, polarized, and oblique light.
Basic metallography
Routine observation and imaging of polished or etched samples.
Education and training
Straightforward mechanics and several viewing tubes suit rotating groups of users.
- Microscope type
- Upright binocular materials microscope
- Primary use
- Education, basic metallography, and materials laboratories
- Magnification
- 50×–1000×
- Nosepiece
- 4 or 5 positions
- Illumination
- Transmitted- and reflected-light LED
- Reflected-light methods
- Brightfield, polarized, four-segment oblique illumination
- LED lifetime
- Average of more than 20 years
- Stage
- Universal industrial cross stage for reflected/transmitted light
- Specimen holders
- 25 mm or 30 mm diameter samples
- Viewing tubes
- Four tube configurations available
- Eyepieces
- 10×, 20 mm field of view
- Imaging
- Compatible with multiple Leica microscope cameras
- Software workflow
- Capture, annotation, measurement, and documentation
- Expansion
- Modular camera, tube, and software configuration
