1 Your work in focus
Increased productivity, optimum visibility of products and components, easy processing of subassemblies – industrial production of electronic components and medical devices requires a highly specialized microscope.
Leica A60 F and A60 S stereomicroscope
A60 F & A60 SIndustrial Stereo Microscopes
Productivity and high precision are required in industrial production such as electronic components or medical devices. The intuitive A60 F and A60 S stereo microscopes fulfill what you need – high sample throughput, optimum visibility of product details and components, and easy processing of subassemblies.
1
2 See more of the sample
The Leica A60 offers a magnification range from 5× to 30×, which enables both a large surface overview and detailed observation; with consistent sharpness and without time-consuming refocusing. This saves valuable time.

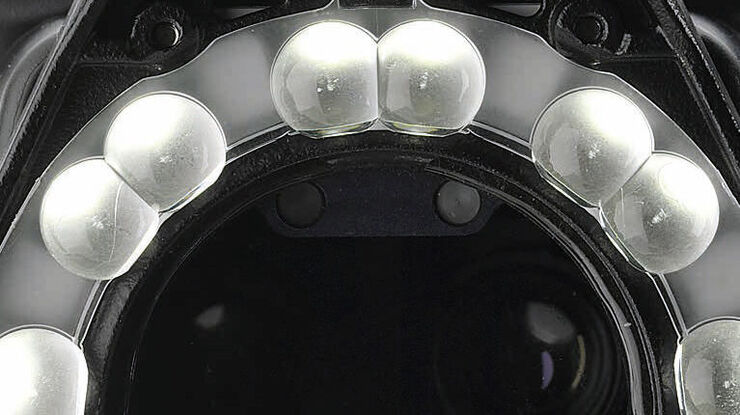

3 Illumination options
The Leica A60 is equipped with a bright, uniform LED ring illuminator plus removable diffuser. The outstanding feature of the ring illuminator is its daylightlike spectrum, which corresponds to the human eye's perception of neutral white. This allows details in different colors to be identified equally well and defects to be identified.
Key feature
Ergonomics for High Performance
Ergonomically designed workstations have been proven to increase performance and the quality of work results. Leica Microsystems’ many years of experience in ergonomics is evident in the Leica A60: The 38° viewing angle of the Leica A60 is close to a person's natural head posture. The zoom and focus knobs could not be more accessible; the rheostat of the focus drive can be adjusted to the preferences of a specific user. The operating elements of the Leica A60 ring illuminator are also intuitive and easily accessible, by left and right-handed users alike.
Product feature
Increase Your Efficiency
For fast, comfortable and convenient work in production, assembly and rework. The A60 reveals up to 80% more of your sample surface area than comparable stereo microscopes. View your sample from overview to the finest details easily with the 46 mm object field.
Optimally suited to the requirements of micro-manufacturing, the Leica A60 stereomicroscope system can effectively increase productivity. With sophisticated Leica Microsystems' precision optics, working with the microscope is significantly faster and more convenient. A low cost of ownership makes the Leica A60 an investment that pays off.
Comfort and convenience during work can enhance production quality
Ergonomic design is a prerequisite for increased comfort and convenience during work and more performance capacity, which can lead to a higher quality end product. The Leica A60 is optimized for long periods of continuous use, can be used intuitively, and quickly adapts to different users.
Product feature

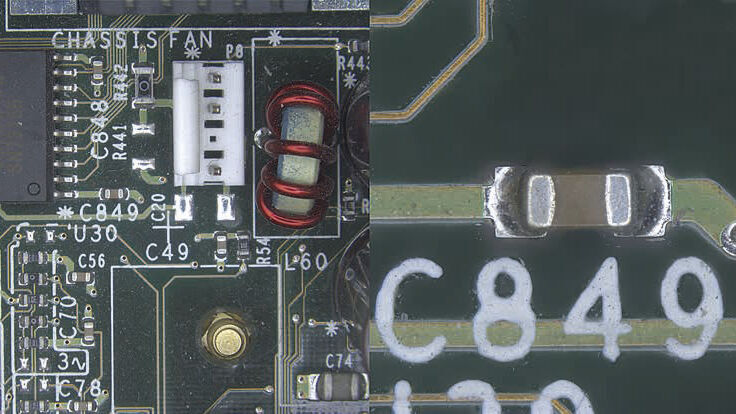

From a Quick Overview to the Smallest Detail
In most cases, components examined under a stereomicroscope in production are only a few millimeters in size. However, the entire workpiece is substantially larger. The Leica A60 offers a magnification range from 5× to 30×, which enables both a large surface overview and detailed observation; with consistent sharpness and without time-consuming refocusing. This saves valuable time.
Eagle eye in the millimeter range
With a depth of field of up to 13.6mm, the Leica A60 has a depth of field that is approximately twice that of comparable stereomicroscopes without FusionOptics ™ technology . Practically speaking, this means that all areas within a height of up to 13.6mm are displayed in sharp focus, without refocusing. Working with the microscope becomes more comfortable, convenient, and efficient.
Product feature
More Room for Work
A working distance of up to 122 mm provides you with optimum access to your work piece and allows better handling of your tools.
Often, manual tasks such as resoldering are performed while components are viewed under the stereomicroscope. With a working distance of up to 122mm, there is enough room to carry out even complex procedures comfortably, accurately, and without microscope contact. The high-quality optics of the Leica A60 are protected from harmful soldering fumes by an interchangeable protective glass.
Product feature

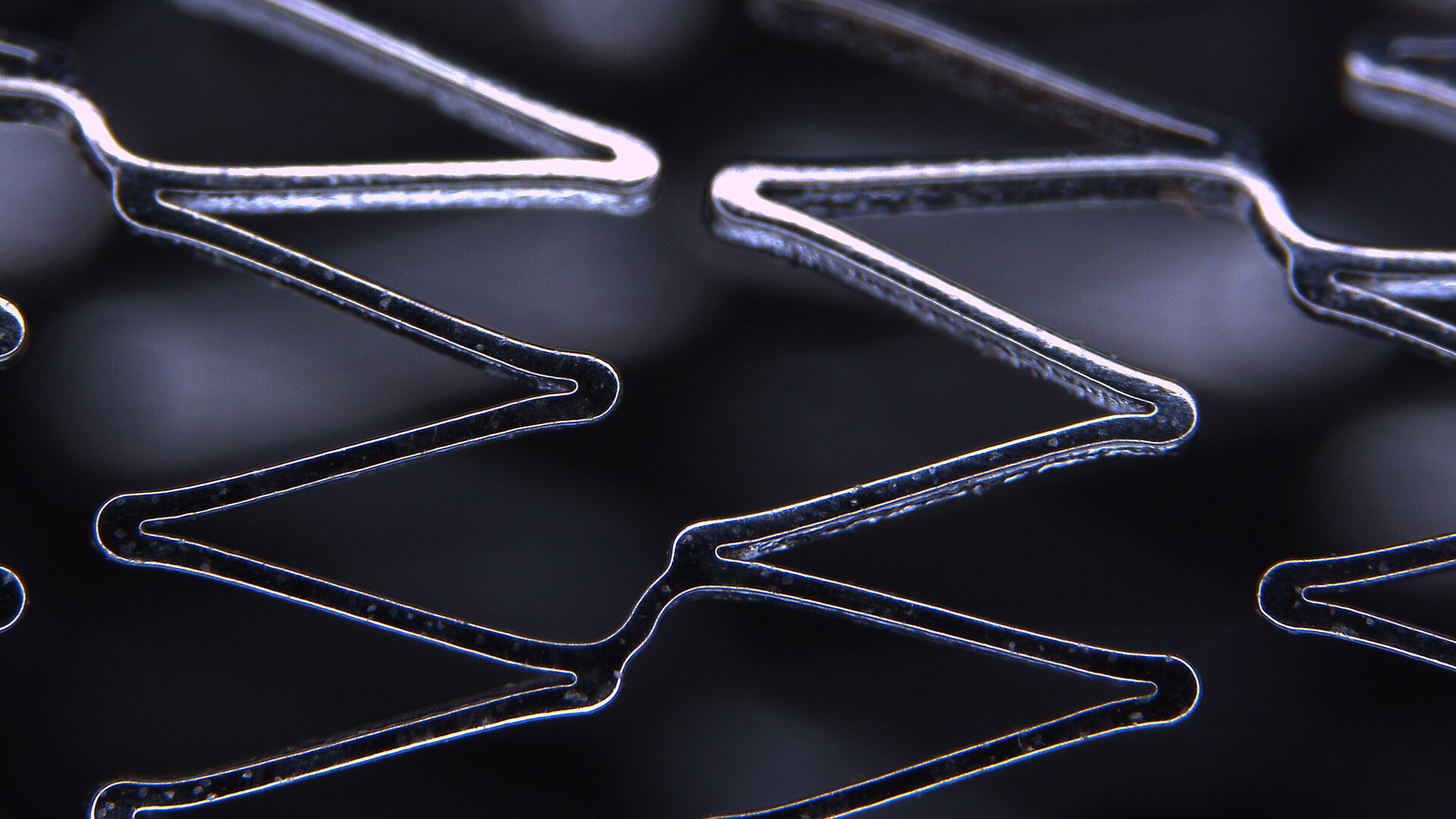

Precision for Medical Device Manufacturing
- Optimizes productivity and quality: The Leica A60 is optimized for applications in which components have to be assembled, glued, soldered, and reworked.
- The illumination: powerful yet energy-saving: Because medical components in frequently consist of reflective metal that causes bothersome shiny spots during viewing, the Leica A60 offers two types of illumination.
- Ergonomically designed: The Leica A60 benefits from Leica Microsystems’ expertise in ergonomic design.
Product feature

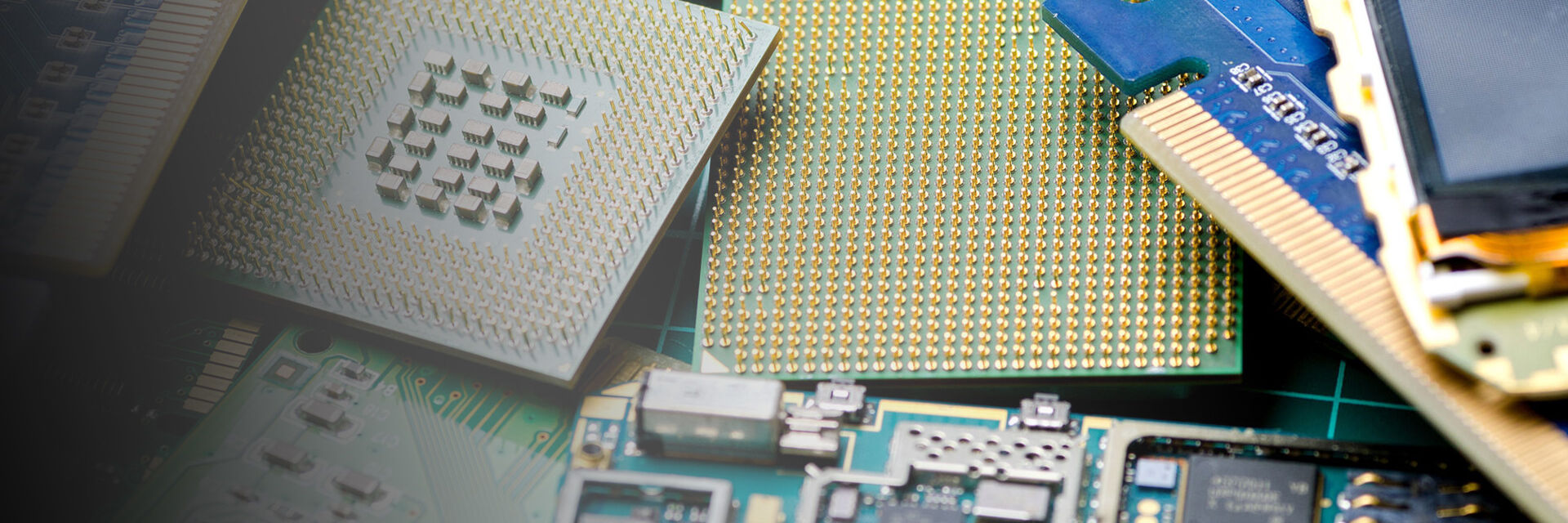

Optimized Electronics Production
- Inspection of printed circuit boards made easy: The optics of the Leica A60 make inspecting and reworking printed circuit boards easy.
- One illuminator – two illumination types: The Leica A60 offers an illuminator that enables a view of both detail-rich workpieces and highly reflective samples.
- Optimum use of the workstation: If a separate microscope workstation is not available, both stand variations – swing arm and flex arm – are ideal.
- Safer for sensitive components: Because protection against static charge is required for tools used in ESD sensitive environments, the Leica A60 has an ESD-protected design.
Product feature

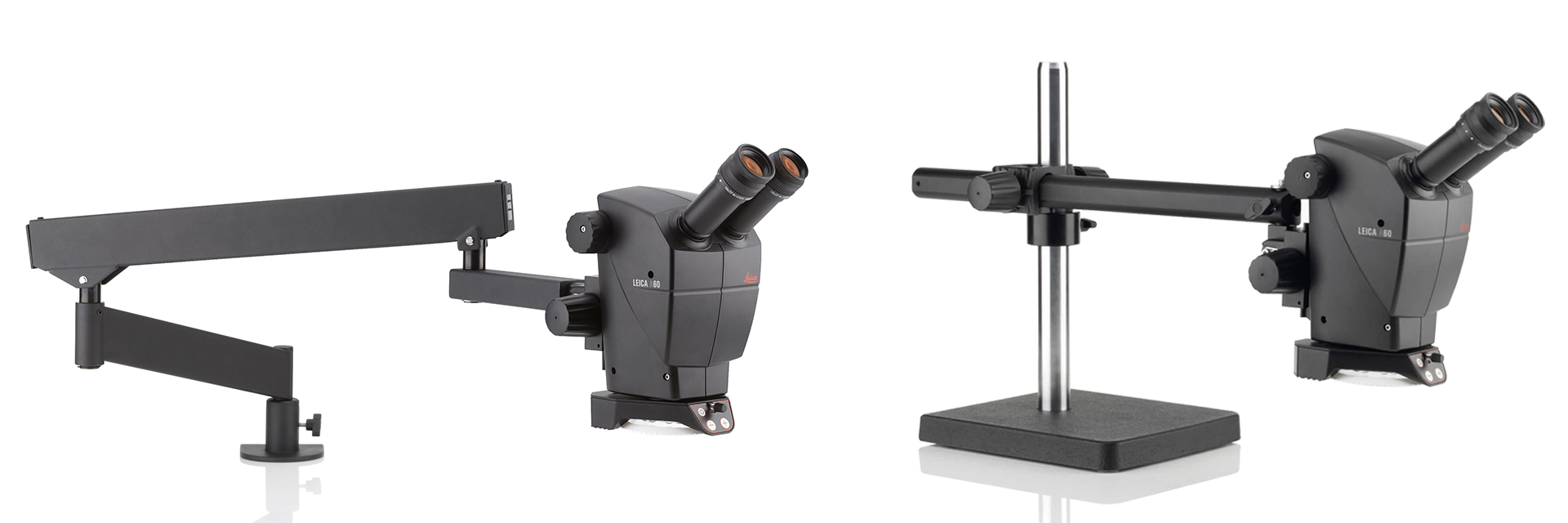

Choose between two different stands
The Leica A60 stereomicroscope does not require the user to be a microscope expert. The components of the preconfigured system are perfectly matched to each other to provide easy operation with the best optical results.
Choose between two different stands: the Leica A60 F with flex arm for maximum freedom of movement or the Leica A60 S with swing arm for high stability. Both stands are ideal for viewing large samples and for working at a work table. By simply swinging the stand arm in or out, the work surface can be used for other tasks at any time.
Product feature

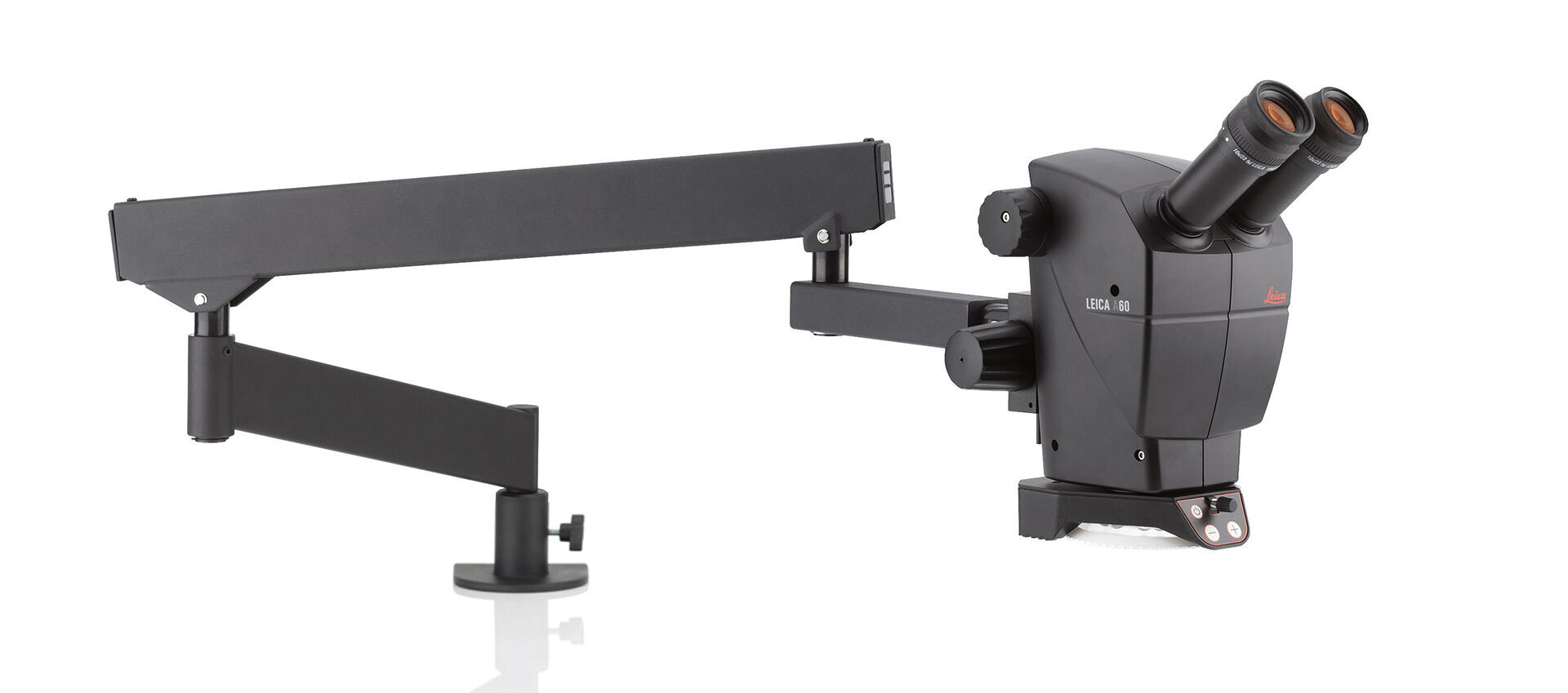

Highlights of the Leica A60 F
- The table clamp allows maximum freedom of movement while requiring minimum table space
- Easy viewing of the sample in x and y directions
- Easy height adjustment for different sample heights
- Maximum space savings provided by table clamp fastening
Product media
Product images
A60 F & A60 S Industrial Stereo Microscopes
- Product model
- A60 F & A60 S
- Product type
- Industrial Stereo Microscopes
- Product overview
- Productivity and high precision are required in industrial production such as electronic components or medical devices,The intuitive A60 F and A60 S stereo microscopes fulfill what you need – high sample throughput, optimum visibility of product details and components, and easy processing of subassemblies.
- Key feature
- Your work in focus,See more of the sample,Illumination options
- Your work in focus
- Increased productivity, optimum visibility of products and components, easy processing of subassemblies – industrial production of electronic components and medical devices requires a highly specialized microscope.
