E09SE Handheld Thermal Imaging Thermometer
HIKMICRO · E09Se

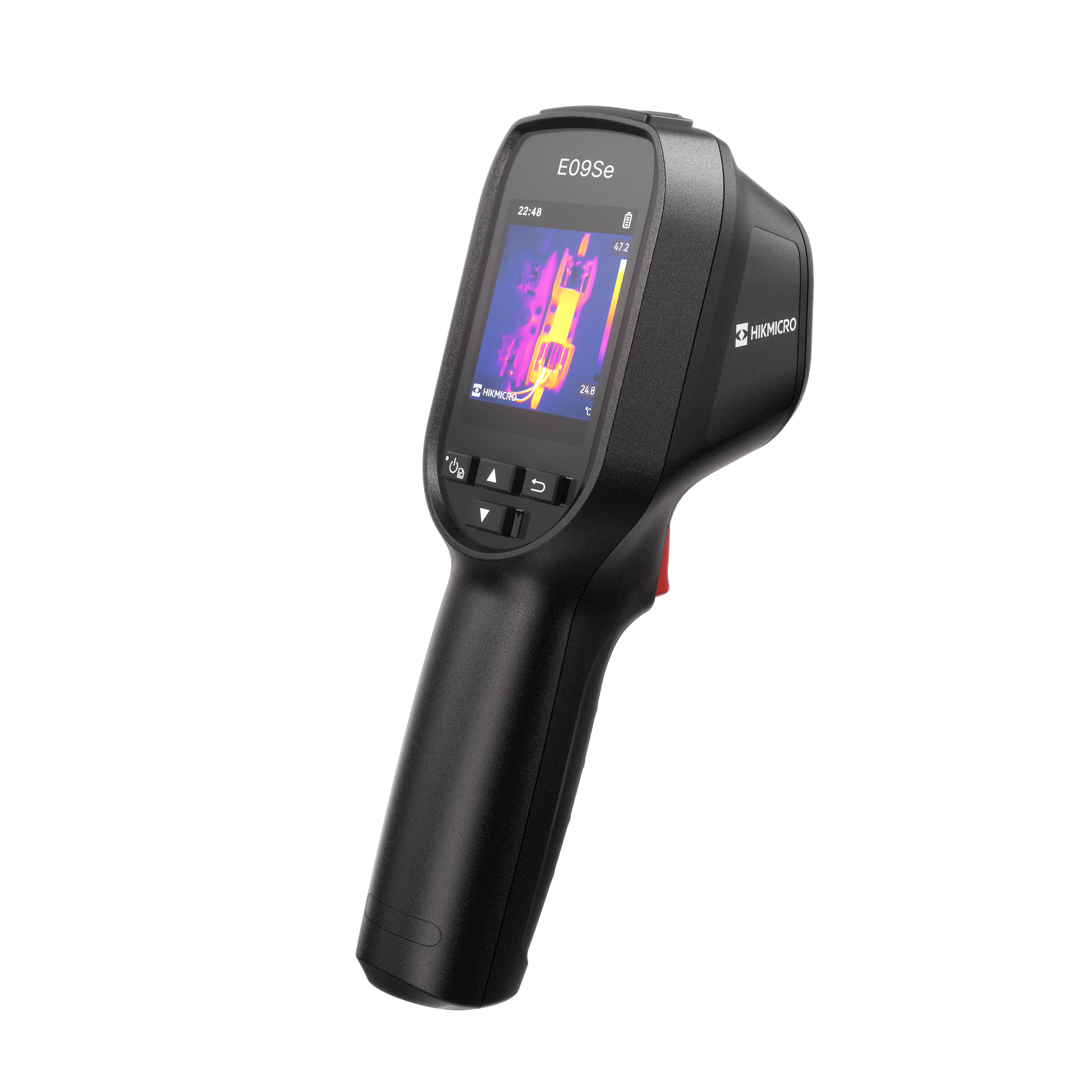

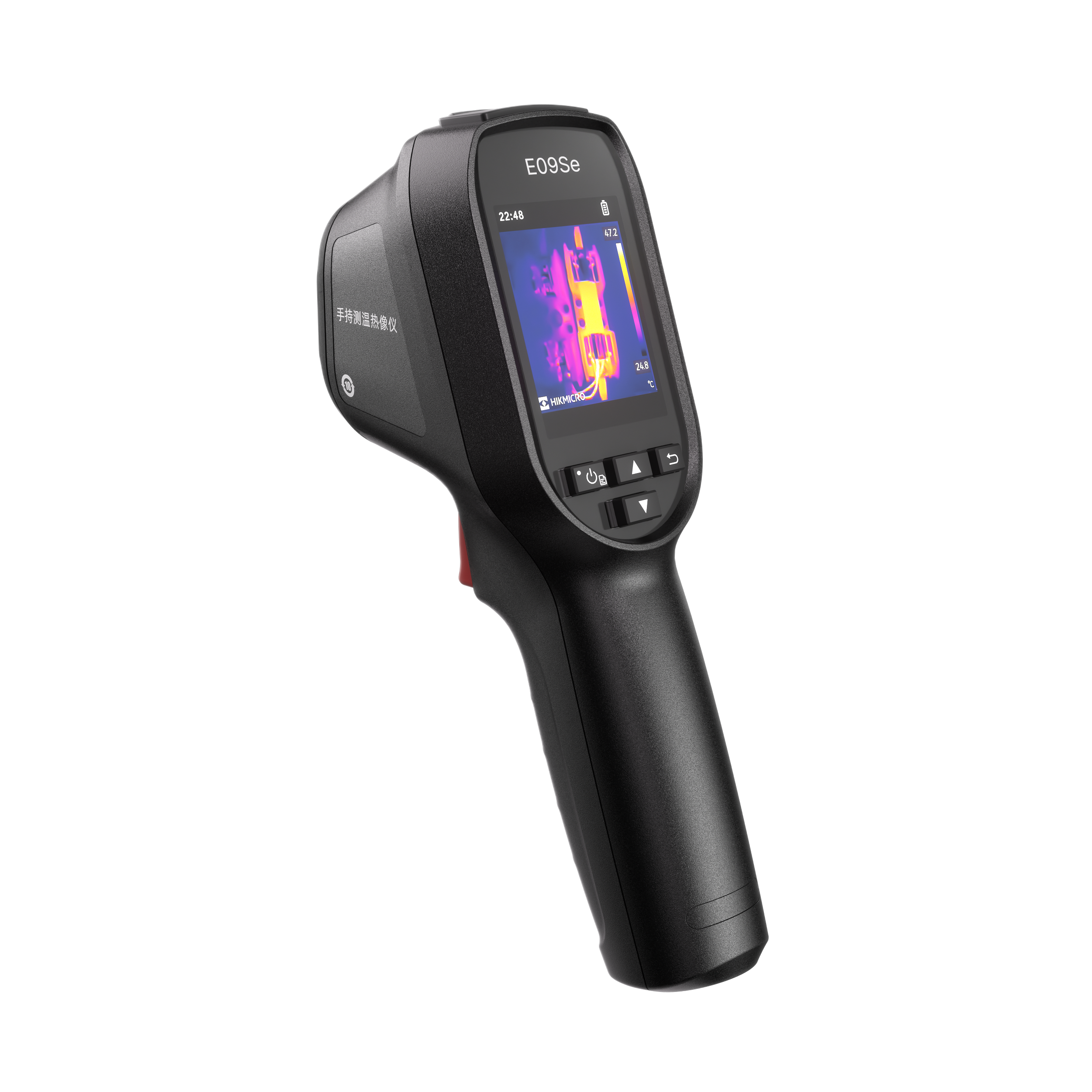

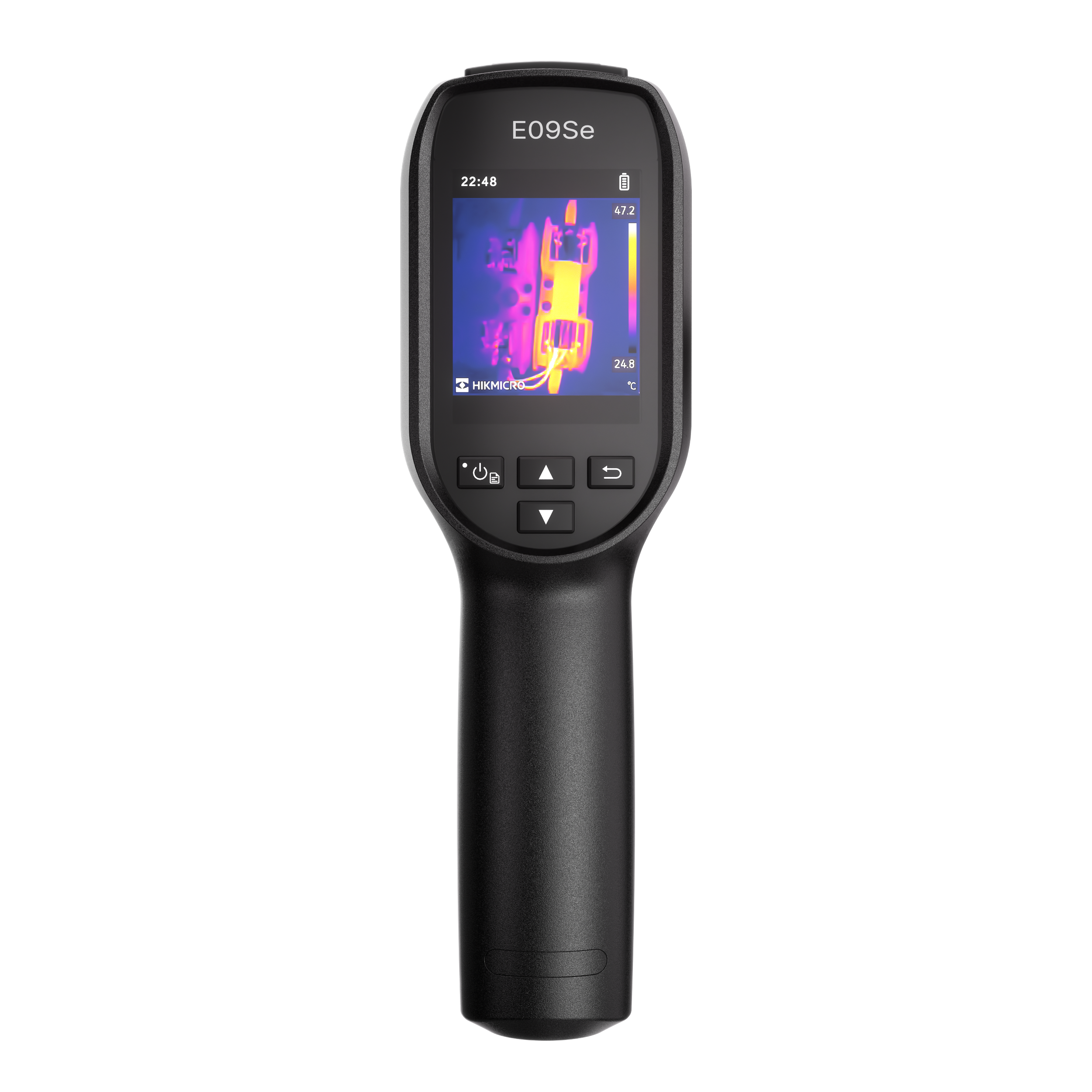

E09Se Handheld Thermography Camera
Industrial Thermography | Fault Detection | Professional Thermal Imaging
Core capabilities for field inspection
The E09Se combines non-contact thermography, temperature measurement and field-ready documentation to help locate abnormal heat quickly and support follow-up analysis.
Clear thermal detail
A 96 x 96 (9,216 pixels) detector with a 25 Hz frame rate helps reveal temperature distribution across the target.
NETD < 50mK (@ 25 °C,F#=1.0)Wide inspection coverage
The -20°C~550°C temperature range supports routine equipment inspection, fault location and preventive maintenance.
Accuracy ±2 °C or of reading ±2%(whichever is greater)Built for field observation
A 50° × 50° field of view and a focus configuration of fixed focus balance scene coverage with target detail.
IR resolution 96 x 96 (9,216 pixels)Information at a glance
The 2.4inch LCD display (320 × 240) display keeps thermal imagery and measurement data easy to review on site.
Measurement tools: center spot, maximum temperature, minimum temperatureReady for industrial sites
IP54 protection, 1 m drop resistance and a weight of 240 g support mobile field use.
Dimensions 196 × 117 × 59 mmCapture, transfer and analyze
Storage: 4 GB built-in eMMC; Wi-Fi: Not supported; 4G: Not supported.
Battery runtime >8 h@25 °CSee the full temperature picture at a glance
The 50° × 50° and 96 x 96 (9,216 pixels) infrared detector bring the thermal distribution and measurement results into one view, helping inspectors identify hot spots, cold spots and abnormal areas quickly.
See temperature distribution and locate anomalies quickly
The 96 x 96 (9,216 pixels) infrared detector and 50° × 50° field of view deliver non-contact measurement across -20°C~550°C.
Turn field temperatures into actionable information
Rated accuracy is ±2 °C or of reading ±2%(whichever is greater). Measurement tools, color palettes and alarms help confirm hot spots, cold spots and selected areas.
Designed for sustained inspection and follow-up analysis
The camera provides 4 GB built-in eMMC storage and >8 h@25 °C battery runtime, together with IP54 protection and 1 m drop resistance.
Watch E09Se in operation and inspection workflows
Use the product video to explore the E09Se exterior, essential controls, and typical on-site thermographic inspection applications.
From routine inspection to professional thermal analysis
The E09Se supports field tasks that require fast detection of abnormal heat, clear documentation of temperature distribution and evidence-based fault assessment.
Electrical Inspection
- Panels and busbar temperature rise
- Terminals and circuit breakers
- Routine preventive maintenance
HVAC & Building
- Underfloor-heating checks
- Pipe leaks and insulation
- Heating and cooling diagnostics
Equipment & Automotive
- Motors, pumps and bearings
- Vehicle electrical and mechanical systems
- On-site temperature documentation
Thermal Imaging
- Detector Type
- uncooled vanadium oxide microbolometer
- Detector Resolution
- 96 x 96 (9,216 pixels)
- Resolution with ISR
- 192 x 192 (36,864 pixels)
- NETD
- < 50mK (@ 25 °C,F#=1.0)
- Minimum Imaging Distance
- 0.1m
- Field of View
- 50° × 50°
- Frame Rate
- 25 Hz
- Minimum Measurement Distance
- 0.1m
- Spatial Resolution (IFOV)
- 8.89 mrad
- Thermal Lens Focal Length
- 1.35 mm
Image Display
- Display
- 2.4inch LCD display (320 × 240)
- Display Modes
- thermal
- Maximum Image Size
- 240 x 240
- Frame Rate
- 25Hz
- Image Format
- radiometric JPEG with offline analysis in the client software
- Color Palettes
- White Hot, Black Hot, Ironbow, Rainbow, Red Hot, Fusion and Blue-Yellow
System Features
- UVC Screen Casting
- Supported
- Video Recording
- Supported
- Image Capture
- Supported
- Text Annotation
- Not supported
- Wi-Fi
- Not supported
- Storage
- 4 GB built-in emmc
- Storage Expansion
- Not supported
- Interfaces
- Type-C
- Charging Time
- <3 h@25°C
- Battery Runtime
- >8 h@25 °C
- Bluetooth
- Not supported
- Work Light
- Not supported
- Image Format
- radiometric JPEG with offline analysis in the client software
- Focus Type
- fixed focus
General
- Mounting
- UNC 1/4-20 tripod mount
Environmental & Physical
- Operating Temperature & Humidity
- -10 °C~50 °C, ≤95%
- Storage Temperature & Humidity
- -40 °C~70 °C, ≤95%
- Ingress Protection
- IP54
- Drop Protection
- 1 m
- Weight
- 240 g
- Dimensions
- 196 × 117 × 59 mm
- Electromagnetic Compatibility (EMC)
- GB/T17799.2, GB 17799.3-2012
- Shock / Vibration
- GB/T 2423.5-2019 GB/T 2423.10-2008
- Package Contents
- USB cable × 1, wrist strap × 1, calibration certificate, user manual
Thermography & Analysis
- Temperature Range
- -20°C to 550°C
- Temperature Accuracy
- ±2 °C or of reading ±2%(whichever is greater)
- High-temperature Alarm
- Supported
- Safety
- IEC61010
Data Storage
- Image Capacity
- 30,000
- Image File Format
- radiometric JPEG with offline analysis in the client software
Client Software
- PC Software
- Analyzer
- Mobile App
- Not supported
- Screen Casting
- Supported
E09Se ordering information
Standard package: USB cable × 1, wrist strap × 1, calibration certificate, user manual
