H10S+ Handheld Thermographic Imager
HIKMICRO · H10S+
H10S+ Handheld Thermography Camera
Industrial Thermography | Fault Detection | Professional Thermal Imaging
Core capabilities for field inspection
The H10S+ combines non-contact thermography, temperature measurement and field-ready documentation to help locate abnormal heat quickly and support follow-up analysis.
Clear thermal detail
A 192 × 144 detector with a 25 Hz frame rate helps reveal temperature distribution across the target.
NETD < 50 mk (@25 °C,F#=1.0)Wide inspection coverage
The -20 °C ～550 °C temperature range supports routine equipment inspection, fault location and preventive maintenance.
Accuracy ±2 °C or of reading ±2%(whichever is greater)Built for field observation
A 27.8° × 37.2° field of view and a focus configuration of fixed focus balance scene coverage with target detail.
IR resolution 192 × 144Information at a glance

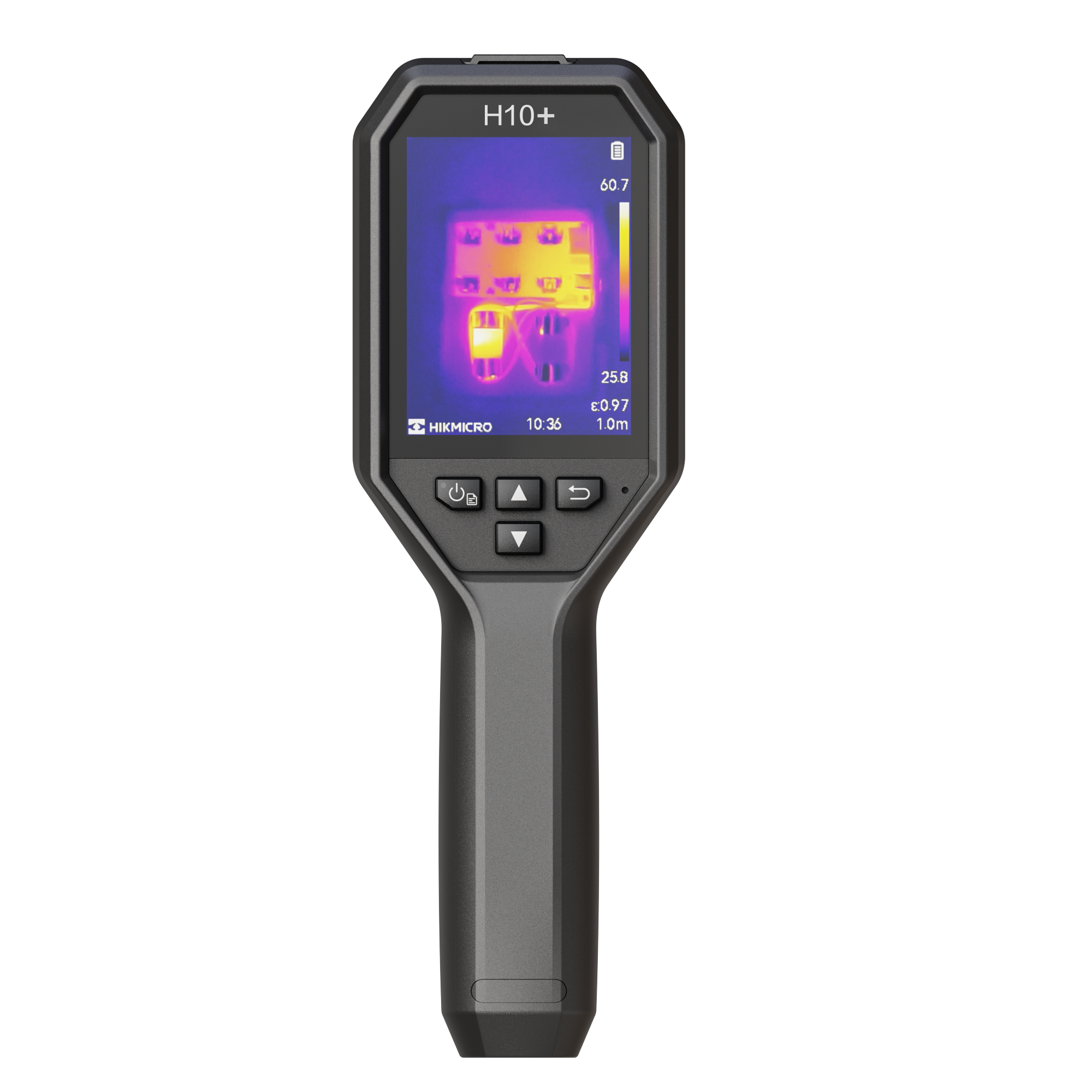

The 3.2inch LCD display (480 × 640) display keeps thermal imagery and measurement data easy to review on site.
Measurement tools: 8 measurement spots (center spot, maximum temperature, minimum temperature, 5custom spots)Ready for industrial sites

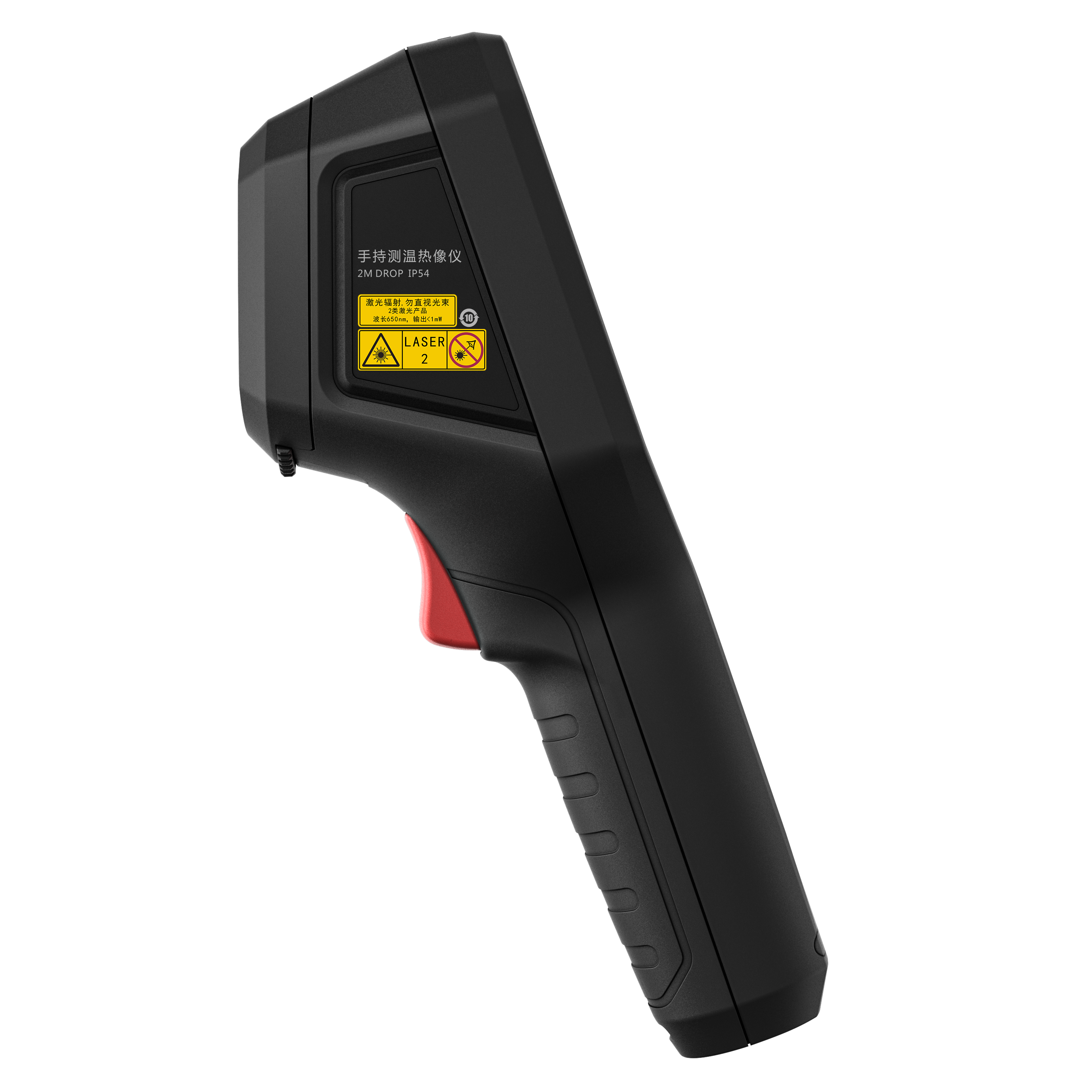

IP54 protection, 2m drop resistance and a weight of 380 g (including battery) support mobile field use.
Dimensions 221.7 mm × 73.5 mm × 123.8 mmCapture, transfer and analyze
Storage: 16 GB eMMC (usable storage is lower than16GB); Wi-Fi: Not supported; 4G: Not supported.
Battery runtime >6 h@25 °CSee the full temperature picture at a glance
The 27.8° × 37.2° and 192 × 144 infrared detector bring the thermal distribution and measurement results into one view, helping inspectors identify hot spots, cold spots and abnormal areas quickly.
See temperature distribution and locate anomalies quickly
The 192 × 144 infrared detector and 27.8° × 37.2° field of view deliver non-contact measurement across -20 °C ～550 °C.
Turn field temperatures into actionable information
Rated accuracy is ±2 °C or of reading ±2%(whichever is greater). Measurement tools, color palettes and alarms help confirm hot spots, cold spots and selected areas.
Designed for sustained inspection and follow-up analysis
The camera provides 16 GB eMMC (usable storage is lower than16GB) storage and >6 h@25 °C battery runtime, together with IP54 protection and 2m drop resistance.
Watch H10S+ in operation and inspection workflows
Use the product video to explore the H10S+ exterior, essential controls, and typical on-site thermographic inspection applications.
From routine inspection to professional thermal analysis
The H10S+ supports field tasks that require fast detection of abnormal heat, clear documentation of temperature distribution and evidence-based fault assessment.
Electrical Inspection
- Panels and busbar temperature rise
- Terminals and circuit breakers
- Routine preventive maintenance
HVAC & Building
- Underfloor-heating checks
- Pipe leaks and insulation
- Heating and cooling diagnostics
Equipment & Automotive
- Motors, pumps and bearings
- Vehicle electrical and mechanical systems
- On-site temperature documentation
Thermal Imaging
- Spectral Range
- 7.5~14 μm
- NETD
- < 50 mk (@25 °C,F#=1.0)
- Thermal Lens Focal Length
- 3.6 mm
- Field of View
- 27.8° × 37.2°
- Frame Rate
- 25 Hz
- F-number
- F1.0
- Temperature Units
- Celsius, Fahrenheit and Kelvin
- Distance-to-Spot Ratio
- 60
- Spatial Resolution (IFOV)
- 3.3 mrad
- Detector Type
- uncooled vanadium oxide microbolometer
- Infrared Detector Resolution
- 192 × 144
- Infrared Image Resolution
- 640 × 480
- Thermal Lens Focal Length
- 3.6 mm
- Minimum Focus Distance
- 0.3 m
- Remote Album Transfer
- Not supported
- Resolution with ISR
- 384 × 288
Image Display
- Display
- 3.2inch LCD display (480 × 640)
- Display Modes
- thermal
- Frame Rate
- 25 Hz
- Color Palettes
- White Hot, Black Hot, Ironbow and Rainbow, high-temperaturehighlight, fusion, Red Hot
System Features
- Laser Pointer
- Supported
- Measurement Tools
- 8 measurement spots (center spot, maximum temperature, minimum temperature, 5custom spots)
- Work Light
- Not supported
- Wi-Fi
- Not supported
- Interfaces
- Type-C
- Battery Type
- rechargeablelithium-ion battery, 3350 mA*h, rated voltage: 3.6 V
- Charging Time
- <3 h@25 °C
- Battery Runtime
- >6 h@25 °C
- Power Management
- Supportedautomatic screen-off; adjustable: 10/20/30/40/50/60 min
- Inspection Routes
- Not supported
- Video Format
- Not supported
- Image Format
- radiometric JPEG with offline analysis in the client software
- Real-time ISR
- Supported
- Album Capacity Indicator
- Supported
- Timed Capture
- Supported
- AI Scene Presets
- Not supported
- Thermometer Mode
- Supported
Environmental & Physical
- Power Adapter Output
- output voltage: 5 V, maximum output current: 2 A
- Operating Temperature & Humidity
- -10 °C ~50 °C, ≤95%
- Storage Temperature & Humidity
- -20 °C ~60 °C, ≤95%
- Ingress Protection
- IP54
- Drop Protection
- 2m
- Weight
- 380 g (including battery)
- Dimensions
- 221.7 mm × 73.5 mm × 123.8 mm
- Accessories
- 5 V power adapter, USB cable, wrist strap, documentation, calibration certificate
- Electromagnetic Compatibility (EMC)
- GB/T17799.2, GB 17799.3-2012
Thermography & Analysis
- Temperature Range
- -20 °C ～550 °C
- Temperature Accuracy
- ±2 °C or of reading ±2%(whichever is greater)
Data Storage
- Storage
- 16 GB eMMC (usable storage is lower than16GB)
- Image Capacity
- 35000
- Text Annotation
- Not supported
- Interfaces
- Type-C
H10S+ ordering information
Standard package: 5 V power adapter, USB cable, wrist strap, documentation, calibration certificate
