H21Pro+ Handheld Thermographic Imager
HIKMICRO · H21Pro+

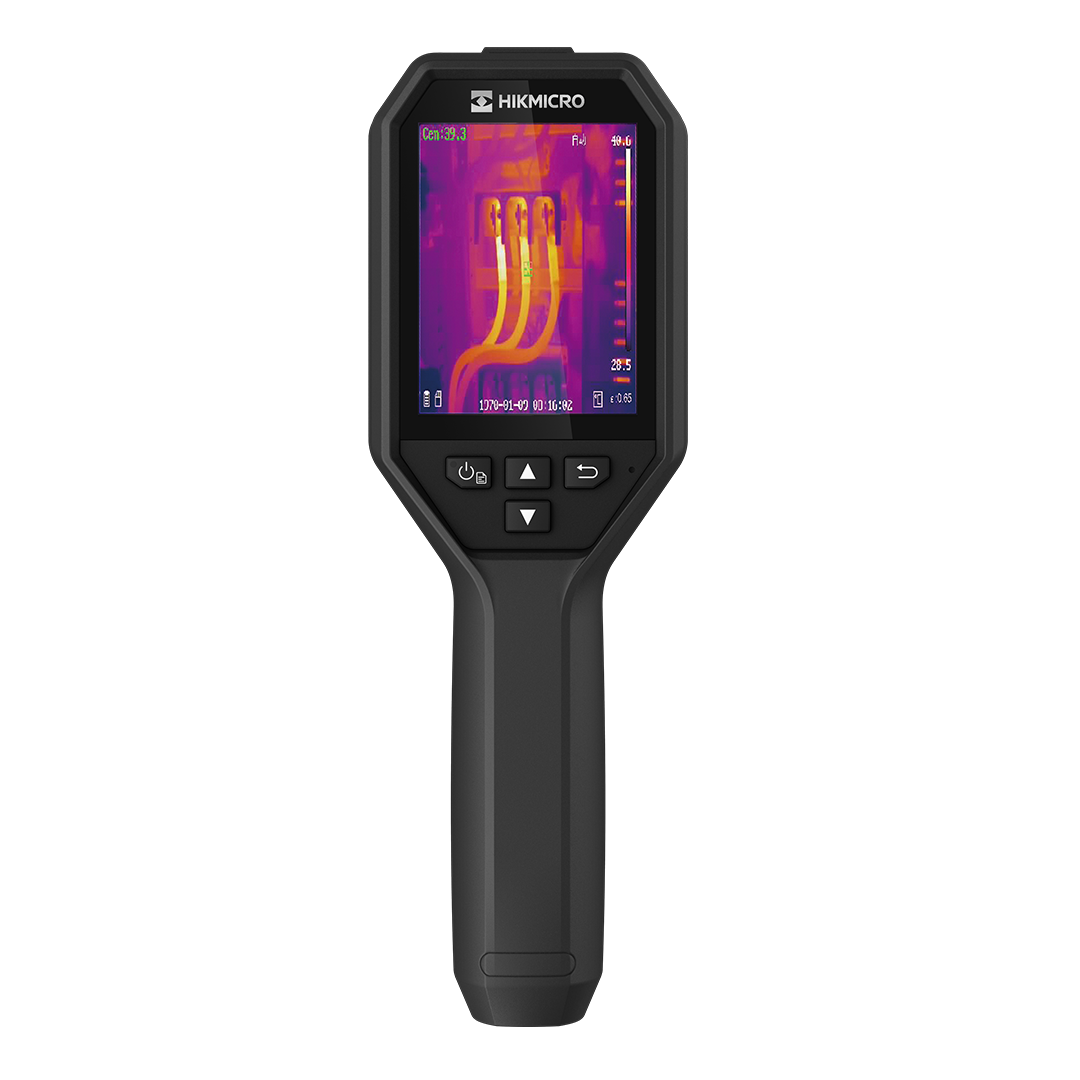

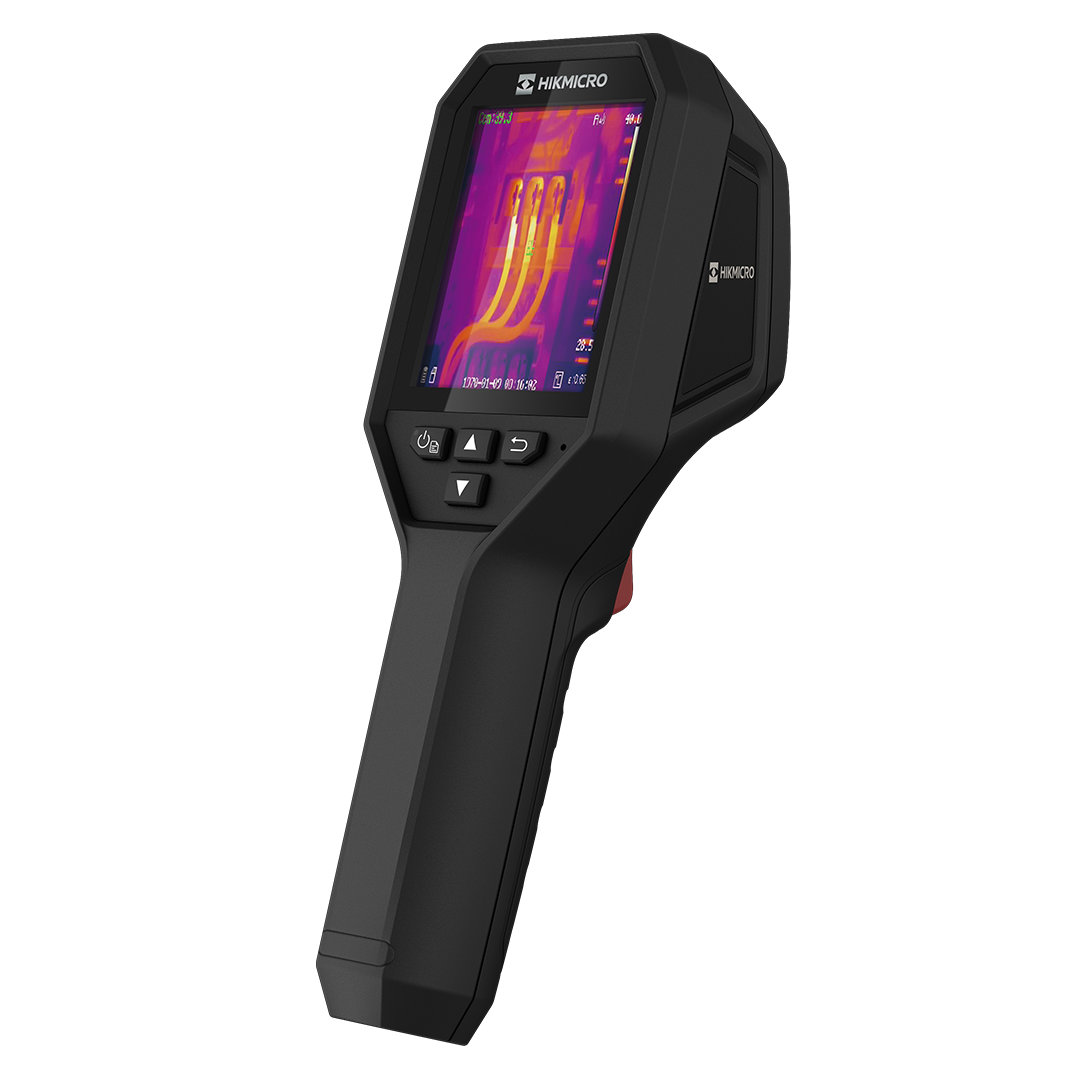

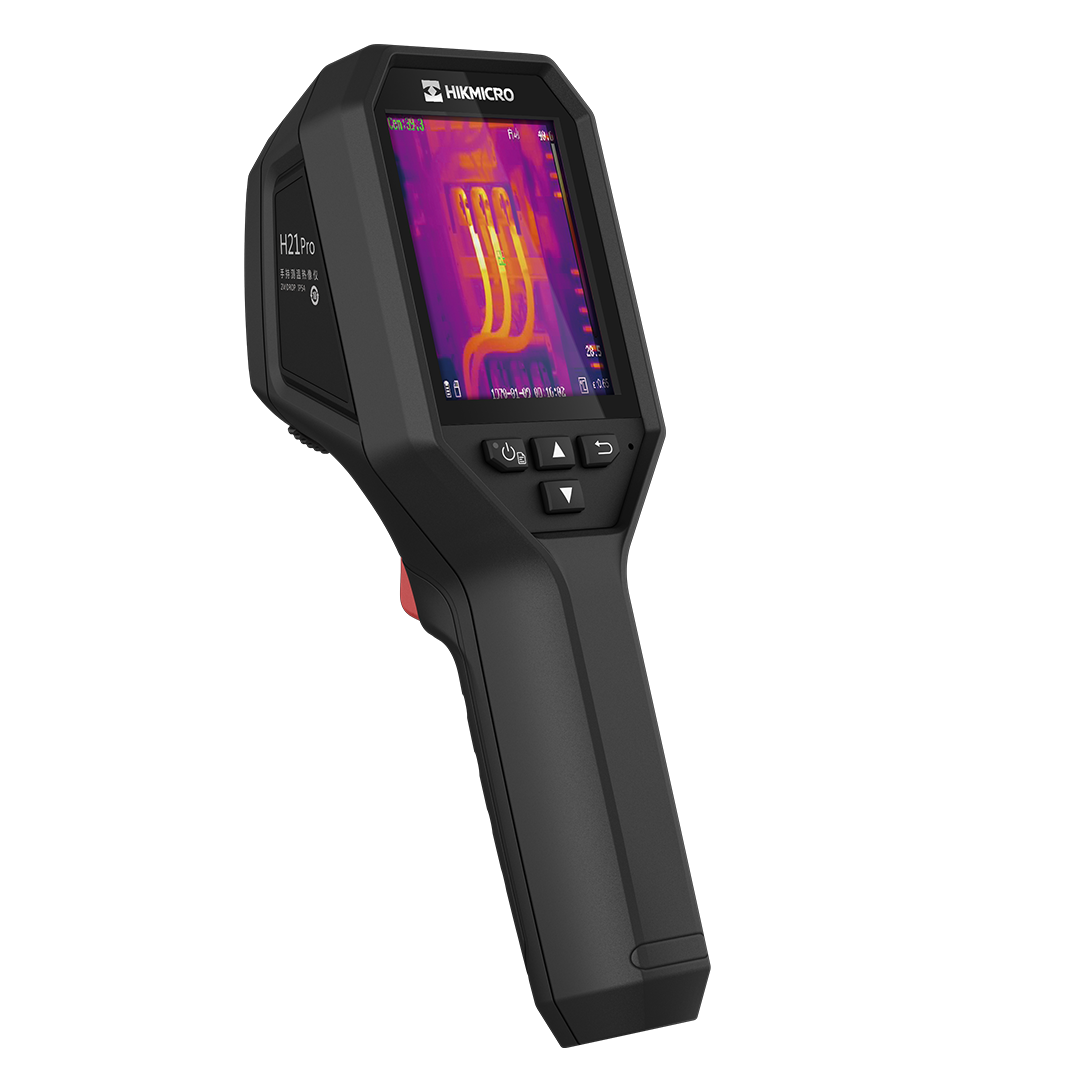

H21Pro+ Handheld Thermography Camera
Industrial Thermography | Fault Detection | Professional Thermal Imaging
Core capabilities for field inspection
The H21Pro+ combines non-contact thermography, temperature measurement and field-ready documentation to help locate abnormal heat quickly and support follow-up analysis.
Clear thermal detail
A 256 × 192 detector with a 25 Hz frame rate helps reveal temperature distribution across the target.
NETD <50 mk (@25 °C,F#=1.0)Wide inspection coverage
The -20 °C ～550 °C temperature range supports routine equipment inspection, fault location and preventive maintenance.
Accuracy ±2 °C or of reading ±2%(whichever is greater)Built for field observation
A 37.2° × 50.0° field of view and a focus configuration of fixed focus balance scene coverage with target detail.
IR resolution 256 × 192Information at a glance
The 3.2inch LCD display (480 × 640) display keeps thermal imagery and measurement data easy to review on site.
Measurement tools: 6 measurement spots (center spot, maximum temperature, minimum temperature, 3custom spots)Ready for industrial sites
IP54 protection, 2m drop resistance and a weight of 380 g (including battery) support mobile field use.
Dimensions 221.7 mm × 73.5 mm × 123.8 mmCapture, transfer and analyze
Storage: 16GB eMMC (usable storage is lower than16GB); Wi-Fi: Supported; 4G: Not supported.
Battery runtime >6 h@25 °CSee the full temperature picture at a glance
The 37.2° × 50.0° and 256 × 192 infrared detector bring the thermal distribution and measurement results into one view, helping inspectors identify hot spots, cold spots and abnormal areas quickly.
See temperature distribution and locate anomalies quickly
The 256 × 192 infrared detector and 37.2° × 50.0° field of view deliver non-contact measurement across -20 °C ～550 °C.
Turn field temperatures into actionable information
Rated accuracy is ±2 °C or of reading ±2%(whichever is greater). Measurement tools, color palettes and alarms help confirm hot spots, cold spots and selected areas.
Designed for sustained inspection and follow-up analysis
The camera provides 16GB eMMC (usable storage is lower than16GB) storage and >6 h@25 °C battery runtime, together with IP54 protection and 2m drop resistance.
Watch H21Pro+ in operation and inspection workflows
Use the product video to explore the H21Pro+ exterior, essential controls, and typical on-site thermographic inspection applications.
From routine inspection to professional thermal analysis
The H21Pro+ supports field tasks that require fast detection of abnormal heat, clear documentation of temperature distribution and evidence-based fault assessment.
Electrical Inspection
- Panels and busbar temperature rise
- Terminals and circuit breakers
- Routine preventive maintenance
HVAC & Building
- Underfloor-heating checks
- Pipe leaks and insulation
- Heating and cooling diagnostics
Equipment & Automotive
- Motors, pumps and bearings
- Vehicle electrical and mechanical systems
- On-site temperature documentation
Thermal Imaging
- Spectral Range
- 7.5~14 μm
- NETD
- <50 mk (@25 °C,F#=1.0)
- Thermal Lens Focal Length
- 3.6 mm
- Field of View
- 37.2° × 50.0°
- Frame Rate
- 25 Hz
- F-number
- F1.0
- Temperature Units
- Celsius, Fahrenheit and Kelvin
- Distance-to-Spot Ratio
- 60
- Spatial Resolution (IFOV)
- 3.3 mrad
- Detector Type
- uncooled vanadium oxide microbolometer
- Infrared Detector Resolution
- 256 × 192
- Infrared Image Resolution
- 640 × 480
- Thermal Lens Focal Length
- 3.6 mm
- Minimum Focus Distance
- 0.3 m
- Remote Album Transfer
- Supported
- Resolution with ISR
- 512 × 384
Visible Imaging
- Field of View
- 55° × 42°
- Visible Camera
- Supported
- Focus Mode
- fixed focus
- Image Resolution
- 1600 × 1200
Image Display
- Display
- 3.2inch LCD display (480 × 640)
- Display Modes
- fusion, thermal, visible and PIP
- Frame Rate
- 25 Hz
- Color Palettes
- White Hot, Black Hot, Ironbow and Rainbow, high-temperaturehighlight, fusion, Red Hot
System Features
- Measurement Tools
- 6 measurement spots (center spot, maximum temperature, minimum temperature, 3custom spots)
- Work Light
- Supported
- Wi-Fi
- Supported
- Interfaces
- Type-C
- Battery Type
- rechargeablelithium-ion battery, 3350 mA*h, rated voltage: 3.6 V
- Charging Time
- <3 h@25 °C
- Battery Runtime
- >6 h@25 °C
- Power Management
- Supportedautomatic screen-off; adjustable: 10/20/30/40/50/60 min
- Alarm Linkage
- audible and visual alarm
- Inspection Routes
- Not supported
- Video Format
- Not supported
- Image Format
- radiometric JPEG with offline analysis in the client software
- Timed Capture
- Not supported
- Album Capacity Indicator
- Supported
- Real-time ISR
- Supported
- Thermometer Mode
- Not supported
- AI Scene Presets
- Not supported
Environmental & Physical
- Power Adapter Output
- output voltage: 5 V, maximum output current: 2 A
- Operating Temperature & Humidity
- -10 °C ~50 °C, ≤95%
- Storage Temperature & Humidity
- -20 °C ~60 °C, ≤95%
- Ingress Protection
- IP54
- Drop Protection
- 2m
- Weight
- 380 g (including battery)
- Dimensions
- 221.7 mm × 73.5 mm × 123.8 mm
- Accessories
- 5 V power adapter, USB cable, wrist strap, documentation, calibration certificate
- Electromagnetic Compatibility (EMC)
- GB/T17799.2, GB 17799.3-2012
Thermography & Analysis
- Temperature Range
- -20 °C ～550 °C
- Temperature Accuracy
- ±2 °C or of reading ±2%(whichever is greater)
Data Storage
- Storage
- 16GB eMMC (usable storage is lower than16GB)
- Image Capacity
- 35000
- Text Annotation
- Not supported
- Interfaces
- Type-C
H21Pro+ ordering information
Standard package: 5 V power adapter, USB cable, wrist strap, documentation, calibration certificate
