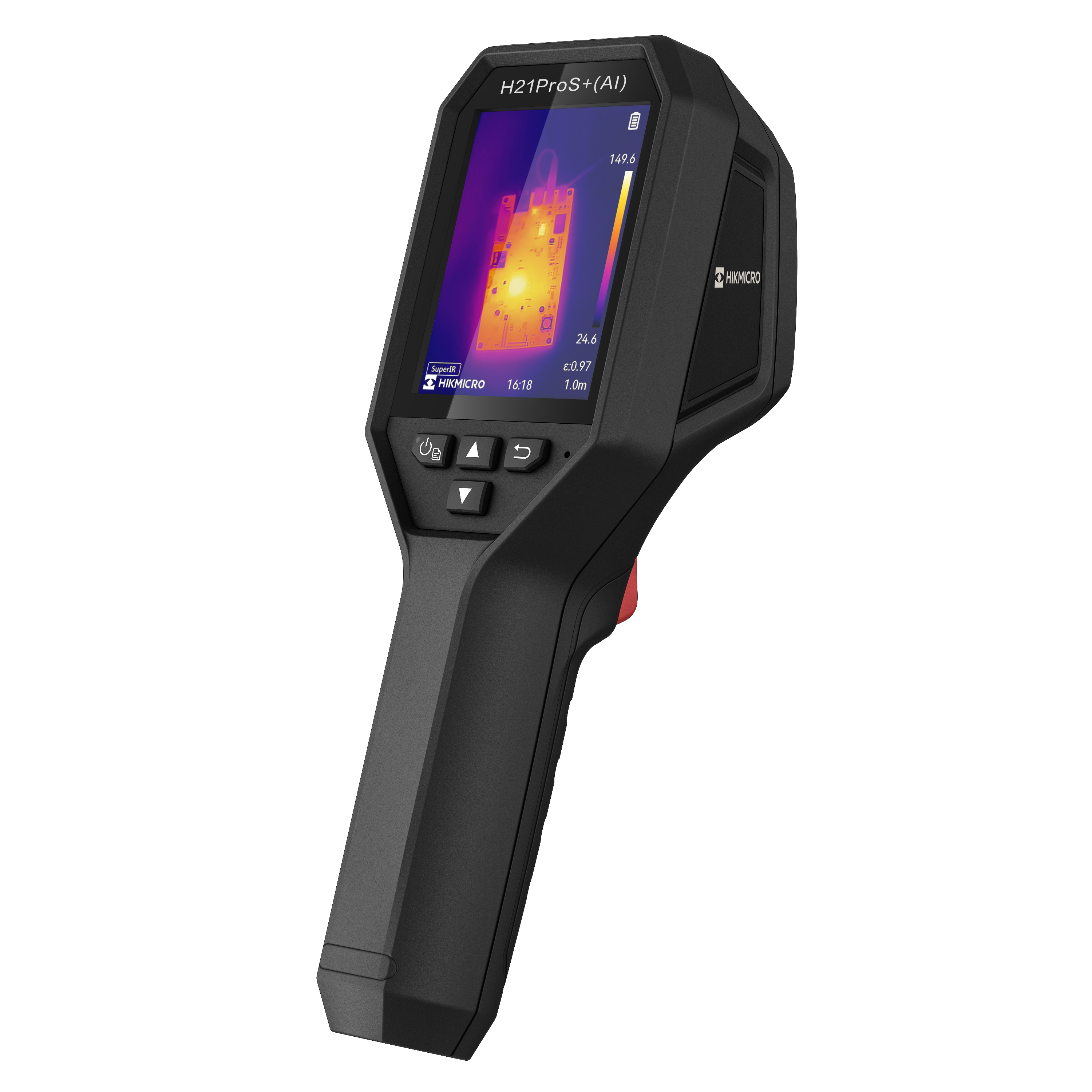

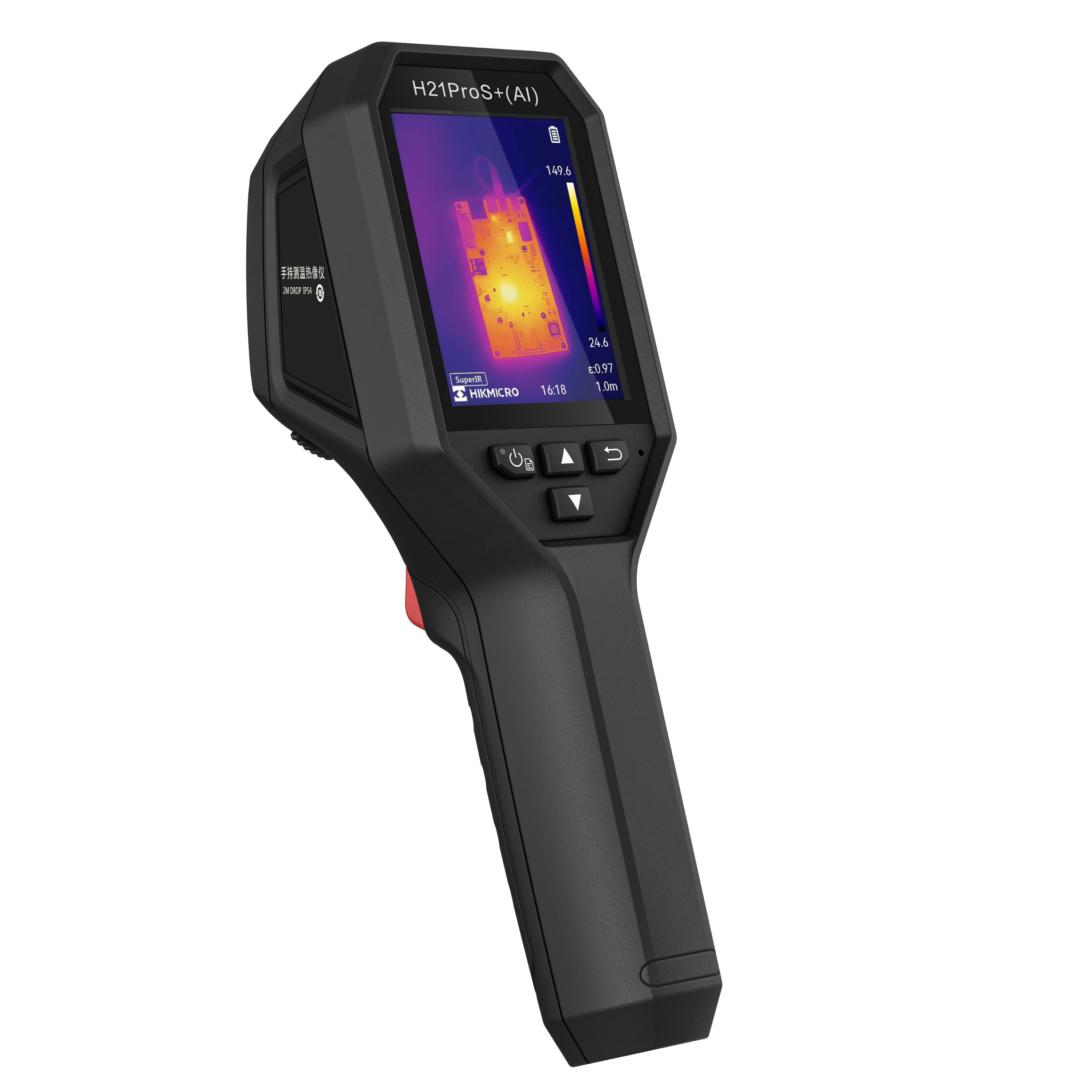

H21ProS+(AI) Handheld Thermographic Imager
HIKMICRO · H21ProS+(AI)
H21ProS+(AI) Handheld Thermography Camera
Industrial Thermography | Fault Detection | Professional Thermal Imaging
Core capabilities for field inspection
The H21ProS+(AI) combines non-contact thermography, temperature measurement and field-ready documentation to help locate abnormal heat quickly and support follow-up analysis.
Clear thermal detail
A 256 × 192 detector with a 25 Hz frame rate helps reveal temperature distribution across the target.
NETD < 50 mk (@25 °C,F#=1.0)Wide inspection coverage
The -20 °C ～550 °C temperature range supports routine equipment inspection, fault location and preventive maintenance.
Accuracy ±2 °C or of reading ±2%(whichever is greater)Built for field observation
A 37.2° × 50.0° field of view and a focus configuration of fixed focus balance scene coverage with target detail.
IR resolution 256 × 192Information at a glance
The 3.2inch LCD display (480 × 640) display keeps thermal imagery and measurement data easy to review on site.
Measurement tools: 8 measurement spots (center spot, maximum temperature, minimum temperature, 5custom spots)Ready for industrial sites

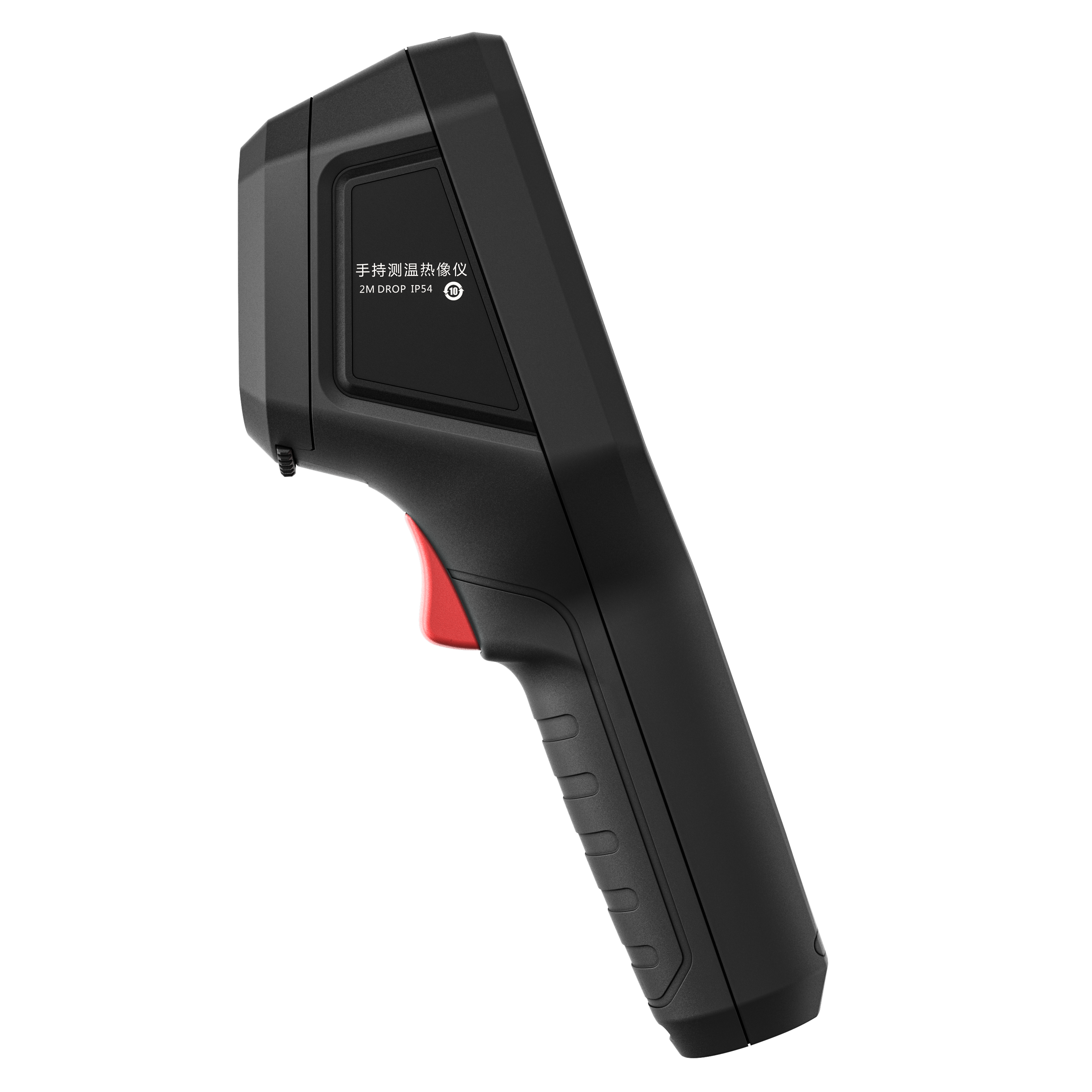

IP54 protection, 2m drop resistance and a weight of 380 g (including battery) support mobile field use.
Dimensions 221.7 mm × 73.5 mm × 123.8 mmCapture, transfer and analyze
Storage: 16GB eMMC (usable storage is lower than16GB); Wi-Fi: Supported; 4G: Not supported.
Battery runtime >6 h@25 °CSmarter scene adaptation for faster decisions
The 256 × 192 infrared detector and 37.2° × 50.0° present temperature distribution across -20 °C ～550 °C, with an inspection workflow optimized to make anomalies easier to recognize.
See temperature distribution and locate anomalies quickly
The 256 × 192 infrared detector and 37.2° × 50.0° field of view deliver non-contact measurement across -20 °C ～550 °C.
Turn field temperatures into actionable information
Rated accuracy is ±2 °C or of reading ±2%(whichever is greater). Measurement tools, color palettes and alarms help confirm hot spots, cold spots and selected areas.
Designed for sustained inspection and follow-up analysis
The camera provides 16GB eMMC (usable storage is lower than16GB) storage and >6 h@25 °C battery runtime, together with IP54 protection and 2m drop resistance.
Watch H21ProS+(AI) in operation and inspection workflows
Use the product video to explore the H21ProS+(AI) exterior, essential controls, and typical on-site thermographic inspection applications.
From routine inspection to professional thermal analysis
The H21ProS+(AI) supports field tasks that require fast detection of abnormal heat, clear documentation of temperature distribution and evidence-based fault assessment.
Electrical Inspection
- Panels and busbar temperature rise
- Terminals and circuit breakers
- Routine preventive maintenance
HVAC & Building
- Underfloor-heating checks
- Pipe leaks and insulation
- Heating and cooling diagnostics
Equipment & Automotive
- Motors, pumps and bearings
- Vehicle electrical and mechanical systems
- On-site temperature documentation
Thermal Imaging
- Spectral Range
- 7.5 ~ 14 μm
- NETD
- < 50 mk (@25 °C,F#=1.0)
- Thermal Lens Focal Length
- 3.6 mm
- Field of View
- 37.2° × 50.0°
- Frame Rate
- 25 Hz
- F-number
- F1.0
- Temperature Units
- Celsius, Fahrenheit and Kelvin
- Distance-to-Spot Ratio
- 60
- Spatial Resolution (IFOV)
- 3.3 mrad
- Detector Type
- uncooled vanadium oxide microbolometer
- Infrared Detector Resolution
- 256 × 192
- Infrared Image Resolution
- 640 × 480
- Thermal Lens Focal Length
- 3.6 mm
- Minimum Focus Distance
- 0.3 m
- Remote Album Transfer
- Supported
- Resolution with ISR
- 512 × 384
Visible Imaging
- Field of View
- 55° × 42°
- Visible Camera
- Supported
- Focus Mode
- fixed focus
- Image Resolution
- 1600 × 1200
Image Display
- Display
- 3.2inch LCD display (480 × 640)
- Display Modes
- fusion, thermal, visible and PIP
- Frame Rate
- 25 Hz
- Color Palettes
- White Hot, Black Hot, Ironbow and Rainbow, high-temperaturehighlight, fusion, Red Hot
System Features
- Measurement Tools
- 8 measurement spots (center spot, maximum temperature, minimum temperature, 5custom spots)
- Work Light
- Supported
- Wi-Fi
- Supported
- Interfaces
- Type-C
- Battery Type
- rechargeablelithium-ion battery, 3350 mA*h, rated voltage: 3.6 V
- Charging Time
- <3 h@25 °C
- Battery Runtime
- >6 h@25 °C
- Power Management
- Supportedautomatic screen-off; adjustable: 10/20/30/40/50/60 min
- Alarm Linkage
- audible and visual alarm
- Inspection Routes
- Not supported
- Video Format
- Not supported
- Image Format
- radiometric JPEG with offline analysis in the client software
- Real-time ISR
- Supported
- Timed Capture
- Not supported
- Album Capacity Indicator
- Supported
- Scene Modes
- Supported
- Thermometer Mode
- Not supported
- AI Scene Presets
- Supported (scene modes: custom, standardinsulation, professional insulation, water-leak inspection, low-temperature moisture, underfloor-heating inspection, electrical inspection, circuit-board inspection, solar-panel inspection)
Environmental & Physical
- Power Adapter Output
- output voltage: 5 V, maximum output current: 2 A
- Operating Temperature & Humidity
- -10 °C ~50 °C, ≤95%
- Storage Temperature & Humidity
- -20 °C ~60 °C, ≤95%
- Ingress Protection
- IP54
- Drop Protection
- 2m
- Weight
- 380 g (including battery)
- Dimensions
- 221.7 mm × 73.5 mm × 123.8 mm
- Accessories
- 5 V power adapter, USB cable, wrist strap, documentation, calibration certificate
- Electromagnetic Compatibility (EMC)
- GB/T17799.2, GB 17799.3-2012
Thermography & Analysis
- Temperature Range
- -20 °C ～550 °C
- Temperature Accuracy
- ±2 °C or of reading ±2%(whichever is greater)
Data Storage
- Storage
- 16GB eMMC (usable storage is lower than16GB)
- Image Capacity
- 35000
- Text Annotation
- Not supported
- Interfaces
- Type-C
H21ProS+(AI) ordering information
Standard package: 5 V power adapter, USB cable, wrist strap, documentati
