Fit specific applications
Powerful image acquisition and analysis software can be selected for different metallographic samples and industrial inspection tasks.
Leica DM ILM Inverted Microscope for Metallography
Industrial materials inspection

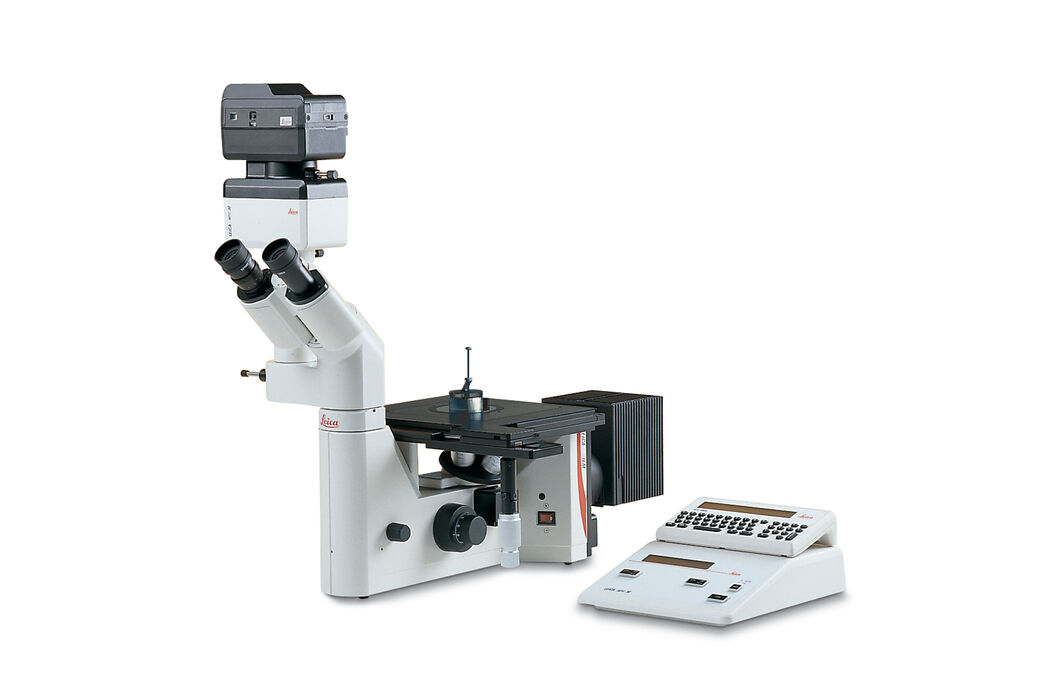

Leica DM ILMInverted microscope for metallography
All industrial inspection and measurement tasks can be performed quickly and efficiently with the modular Leica DM ILM inverted microscope.
High-performance optics provide clear resolution and contrast in incident-light brightfield, polarization, and fluorescence, while the system accommodates large objects, serial inspection, and high sample volumes.
InvertedObservation from below
6Viewing tubes available
0°–35°Ergotube adjustment
6 V / 35 WBuilt-in halogen supply
Key features
Flexible configuration for industrial materials inspection
Choose from six tubes
Six viewing tubes are available, including a 0° to 35° adjustable Ergotube for comfortable microscope work.
Built-in power supply
The built-in 6 V / 35 W halogen-lamp supply is convenient to control and saves bench space.
Industrial workflow
Five advantages of inverted over upright microscopes
Advantage 01

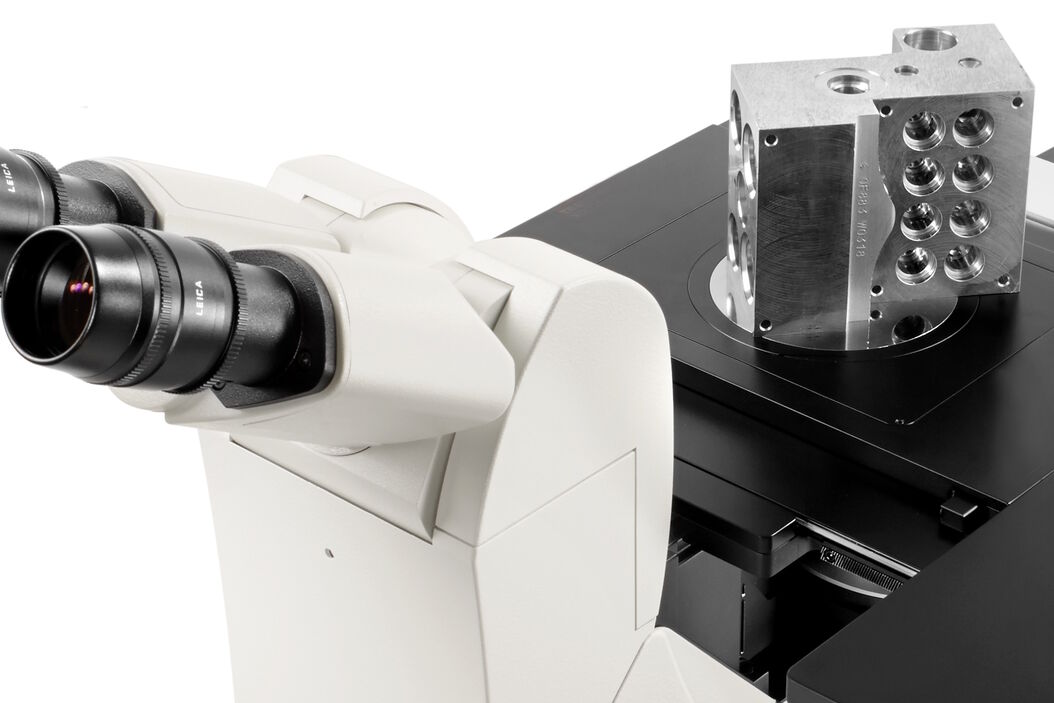

More freedom for large and heavy samples

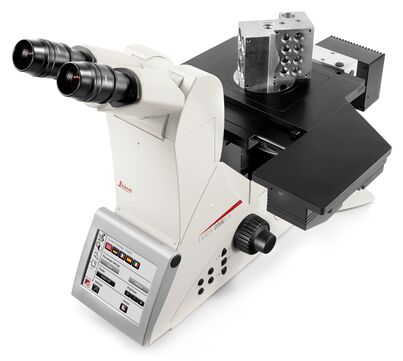

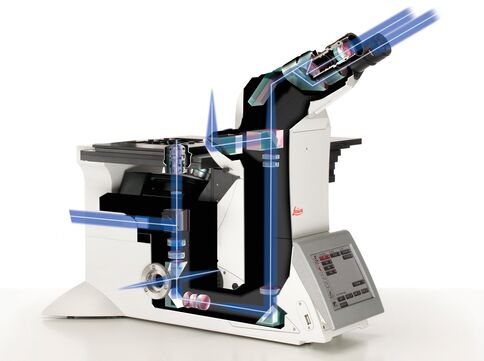

The optics of an inverted microscope are located below the stage, with the sample above the objectives. Compared with an upright design, this layout provides more open working space for objects that vary greatly in height, size, and weight.
Advantage 02
Observe more samples with fewer steps
After a specimen is placed on the stage and its surface is focused, similar specimens can be exchanged directly. The official workflow comparison shows that, under the stated example conditions, inverted observation can substantially shorten sample-change and preparation steps.
Advantage 03
Reduce the risk of an objective touching the sample
The objectives are protected below the stage. This inverted arrangement helps reduce accidental contact between the objective and specimen, lowering the risk of damage to optics, samples, and workflow continuity.
Advantage 04
Save sample-preparation time and cost

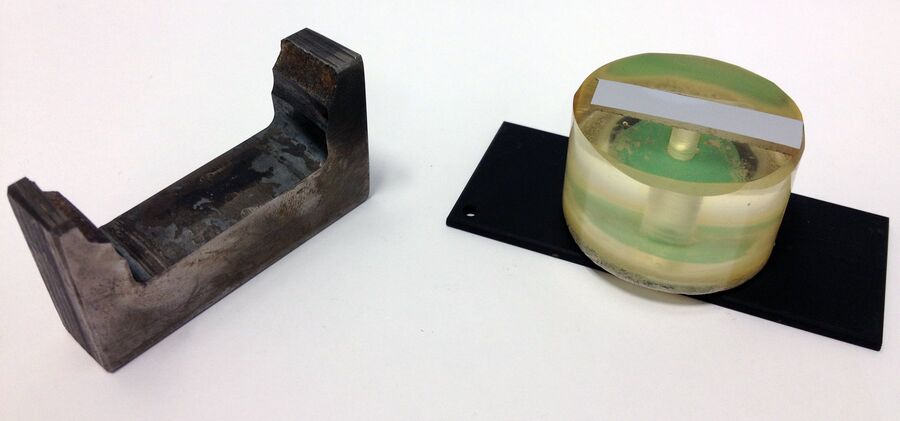

In inverted observation, only one side of the sample normally needs to be prepared. Large workpieces do not have to be cut into smaller pieces and embedded, and a sample press is not required to level the observed surface.
Advantage 05
Move the sample in the direction you expect
With an inverted microscope, the movement of the specimen and the image seen through the eyepieces is in the same direction. This intuitive response reduces the mental load for less-experienced users and helps speed positioning.
Media
From sample placement to preparation workflow
Applications
Bring large samples and serial inspection into routine work
Metallography
Observe the microstructure of metals, alloys, and other materials.
Industrial quality control
Perform routine inspection and documentation for large and serial samples.
Failure analysis
Use brightfield, polarization, or fluorescence to locate material features.
R&D and measurement
Combine image acquisition and analysis software for observation, measurement, and reporting.
- Microscope type
- Modular inverted metallurgical microscope
- Primary use
- Industrial materials observation, measurement, and serial inspection
- Observation direction
- Imaging from below the sample
- Optical methods
- Incident-light brightfield, polarization, and fluorescence
- Sample compatibility
- Large workpieces, heavy objects, and serial samples
- Viewing tubes
- Six tube configurations available
- Ergonomic tube
- Ergotube, adjustable from 0° to 35°
- Illumination supply
- Built-in 6 V / 35 W halogen-lamp supply
- System architecture
- Modular design
- Image acquisition
- Configurable cameras and acquisition solutions
- Image analysis
- Application-specific software packages available
- Typical tasks
- Observation, measurement, serial inspection, and quality records
